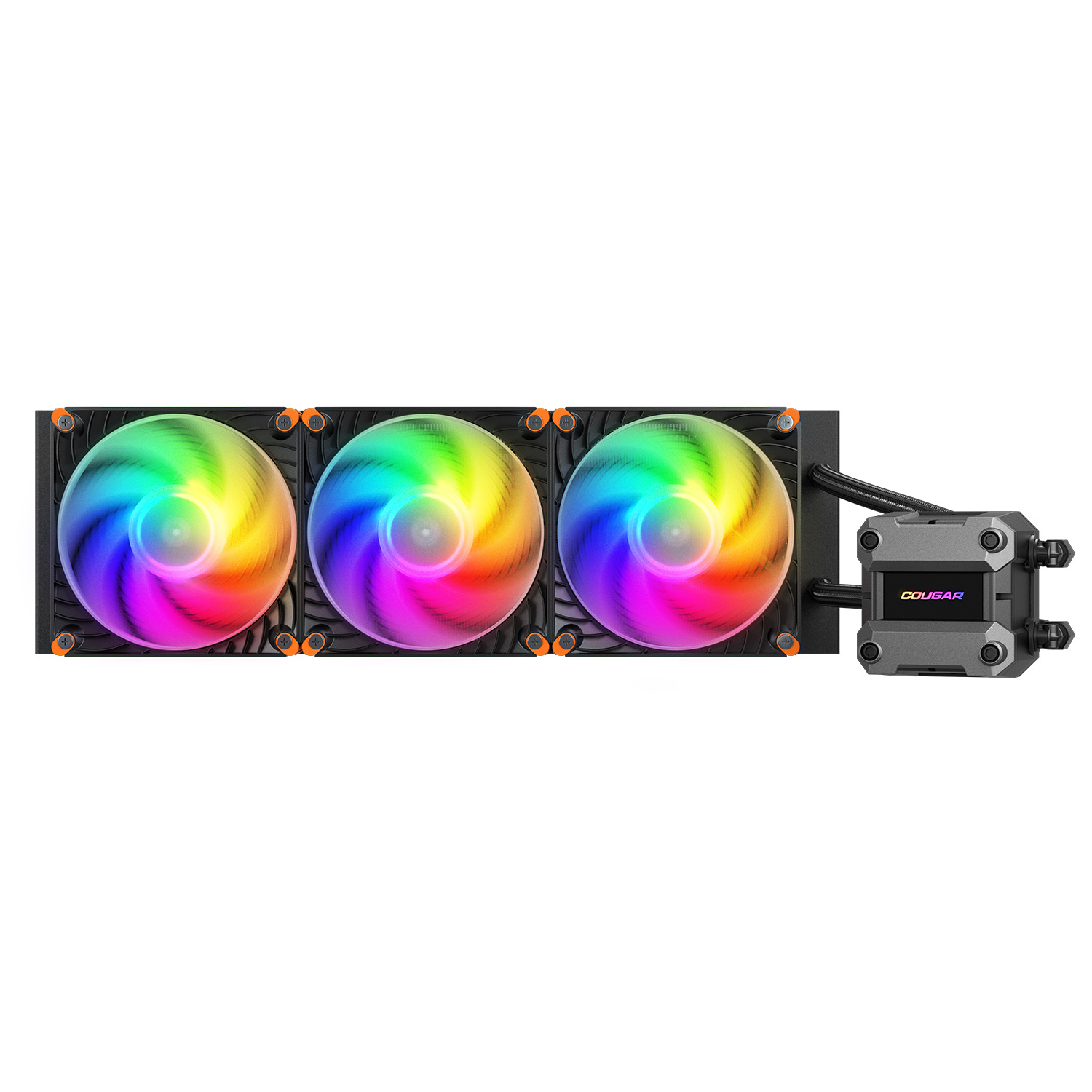

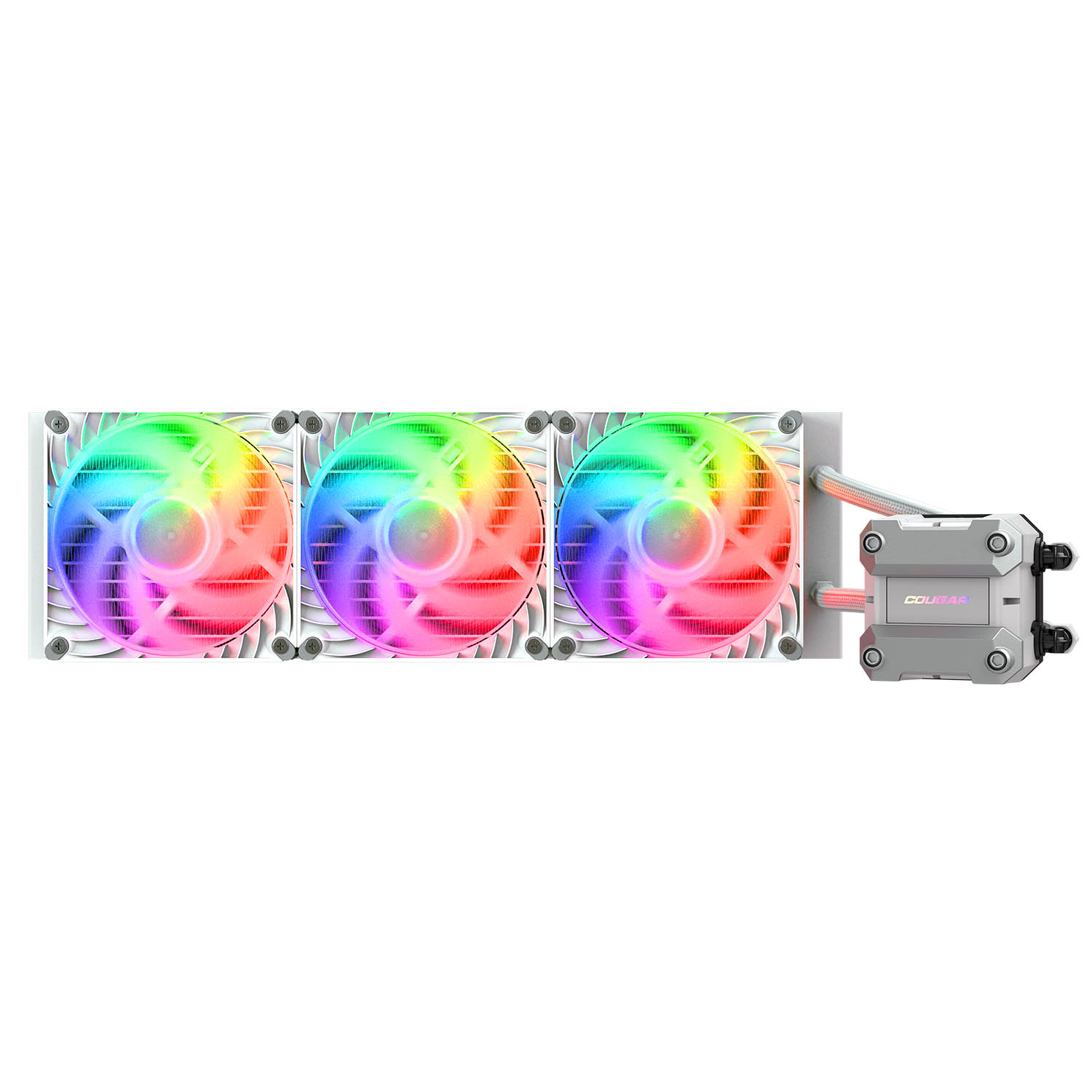

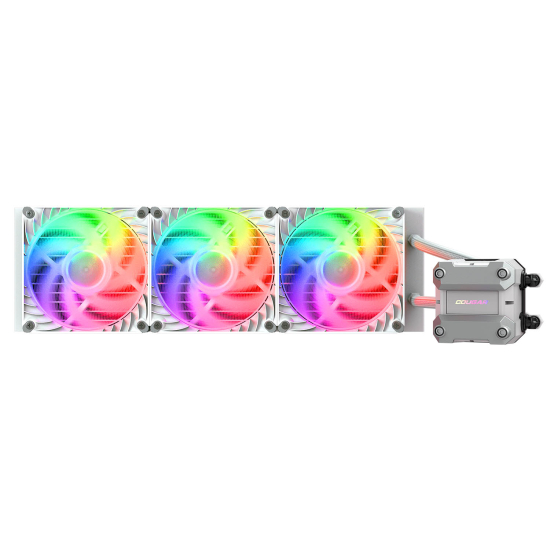

POSEIDON ULTRA ARGB
The Coming of Winter

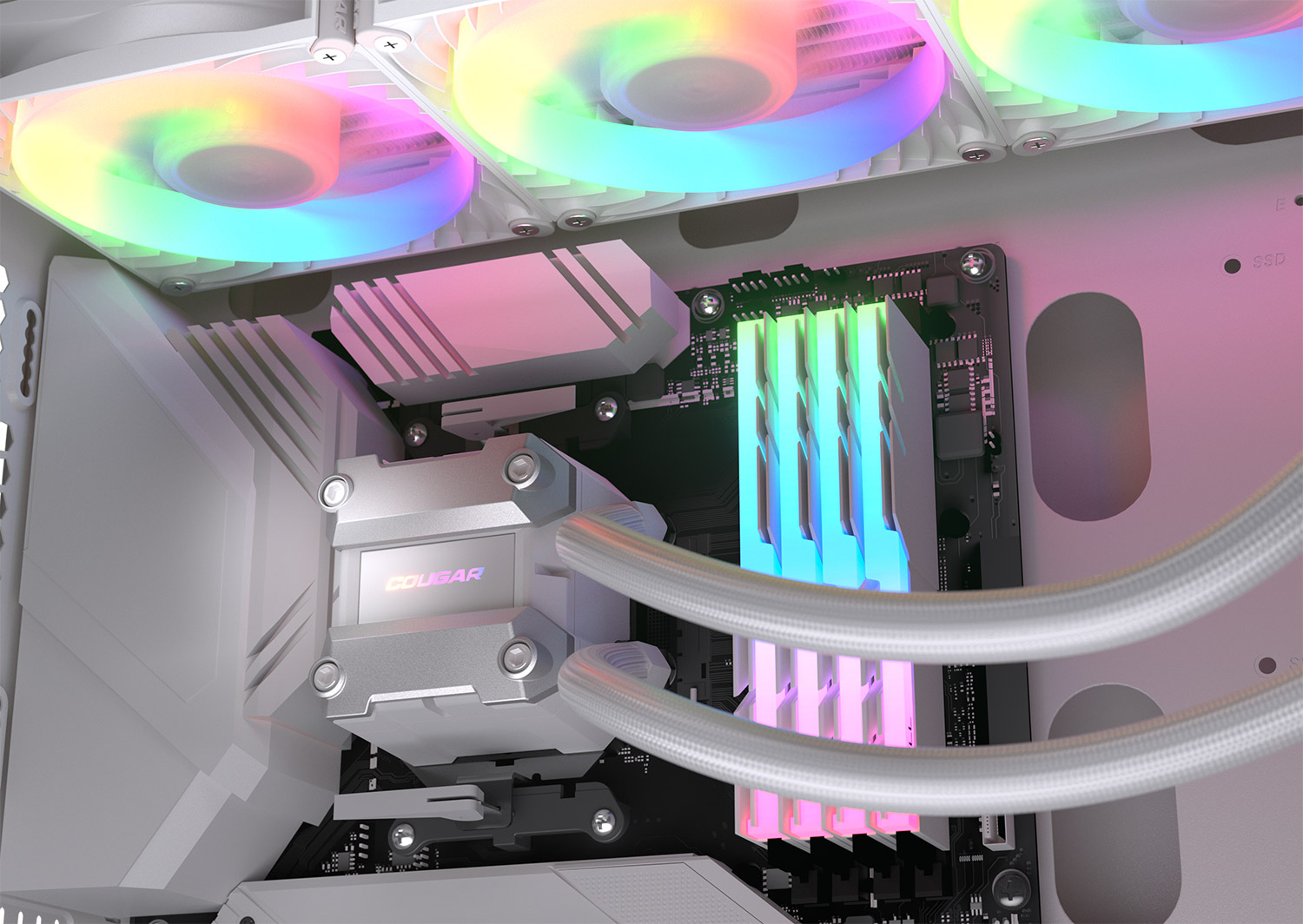

The Poseidon Ultra ARGB stands at the pinnacle of PC liquid cooling. Its Vortent radiator fan achieves the perfect ratio of performance and silence, with its unique frame design generating a vortex effect that optimizes airflow and air pressure. The water cooling block pushes the limits of conduction tech, simultaneously reducing cooling plate thickness and increasing cooling fin surface area, as well as boosting coolant flow speed.
* Support the latest AMD AM5 and Intel LGA1851 CPU sockets.
Type
- Perfect ratio of radiator fan performance to noise.
- Aquadynamic principles generate vortex for optimum airflow.
- Corner dampeners suppress oscillation, reducing vibration noise.
- Grooved impeller molded with an integrated stabilizing ring minimizes flex during rotation and reduces turbulence for optimal and silent cooling.
- Water cooling block boosts coolant flow speed by 25%, increases cooling fin surface by 28% and reduces cooling plate thickness by 50%.
- Copper cooling plate compatible with latest Intel LGA1851 and AMD AM5 sockets.
- Perfect ratio of radiator fan performance to noise.
- Aquadynamic principles applied to radiator frame design, generating vortex for optimum airflow.

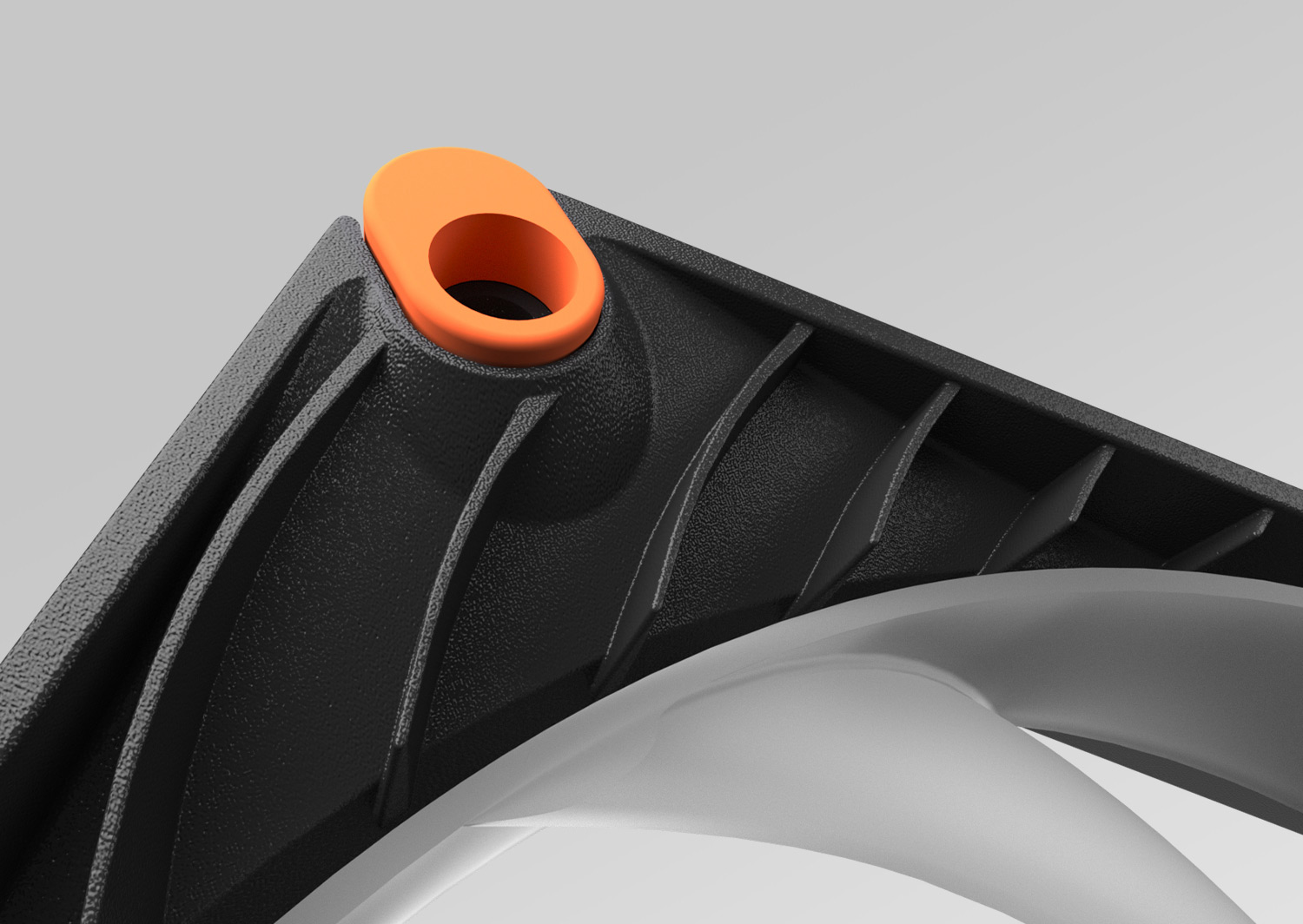

- Corner dampeners suppress oscillation, reducing vibration noise.
- Grooved impeller molded with an integrated stabilizing ring minimizes flex during rotation and reduces turbulence for optimal and silent cooling.
- Copper cooling plate compatible with latest Intel LGA1851 and AMD AM5 sockets.
- Water cooling block boosts coolant flow speed by 25%, increases cooling fin surface by 28% and reduces cooling plate thickness by 50%.

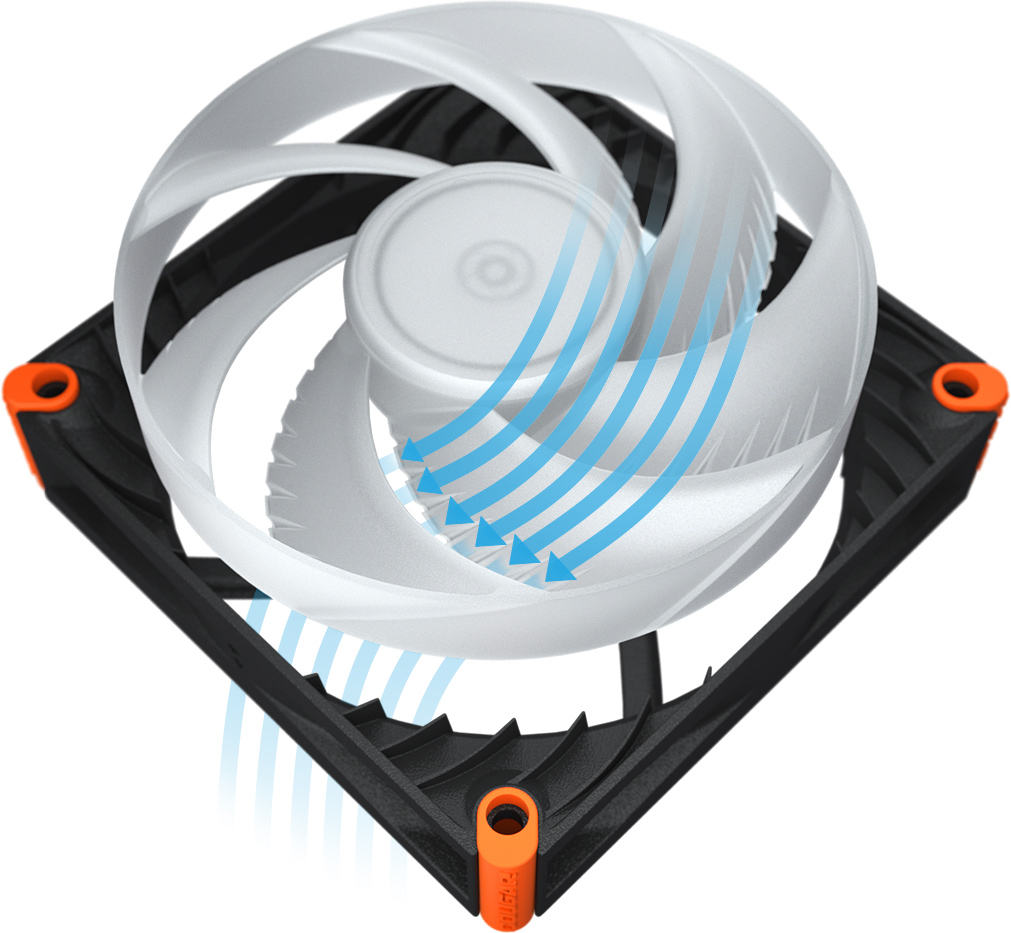

The Coanda Effect
Defined as the tendency of a fluid jet to stay attached to a convex surface, this principle of fluid mechanics is the science behind the Poseidon Ultra ARGB’s fan frame design: convex ridges generate a vortex, concentrating airflow velocity to maximize its cooling effect.
Perfectly Balanced

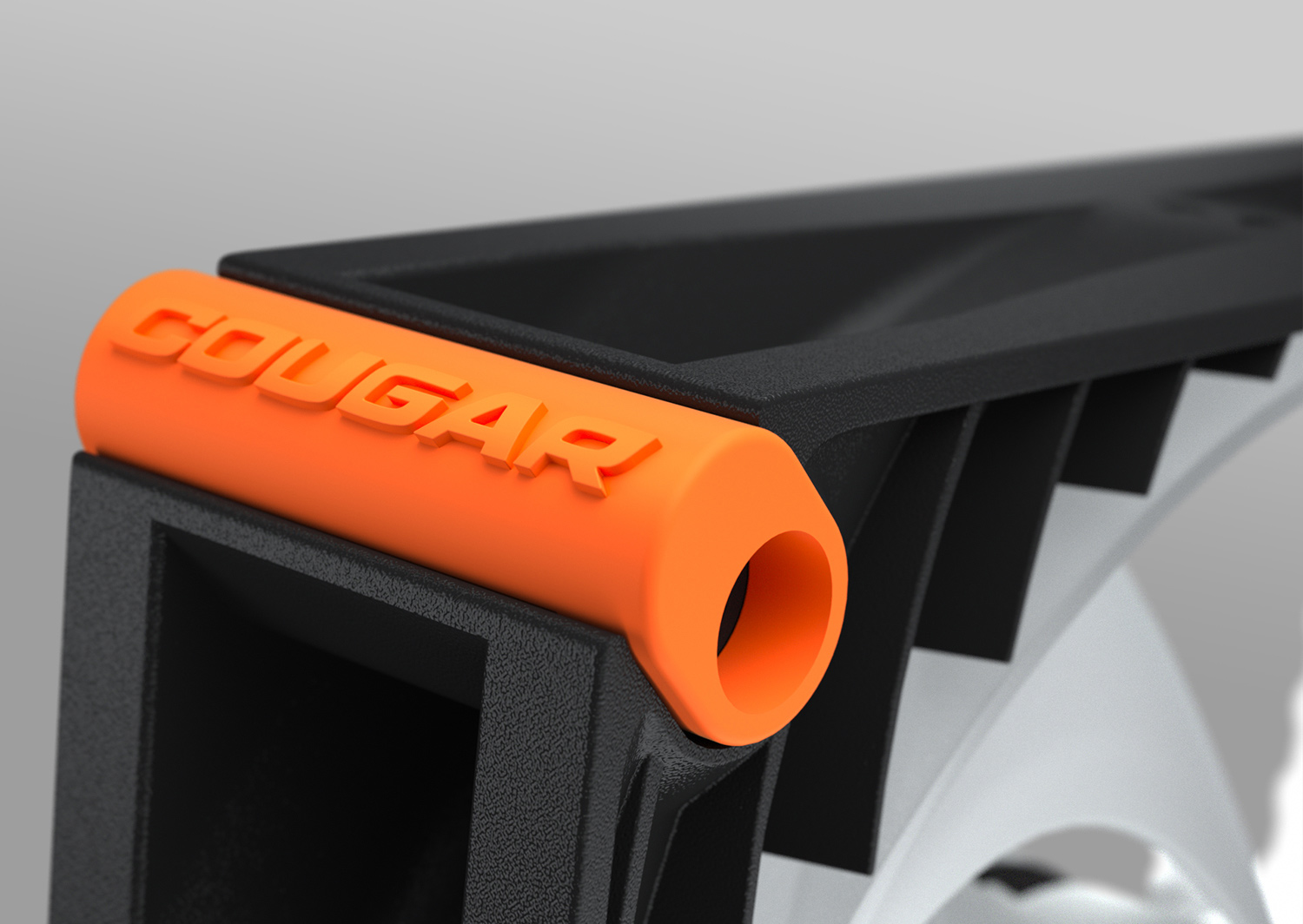

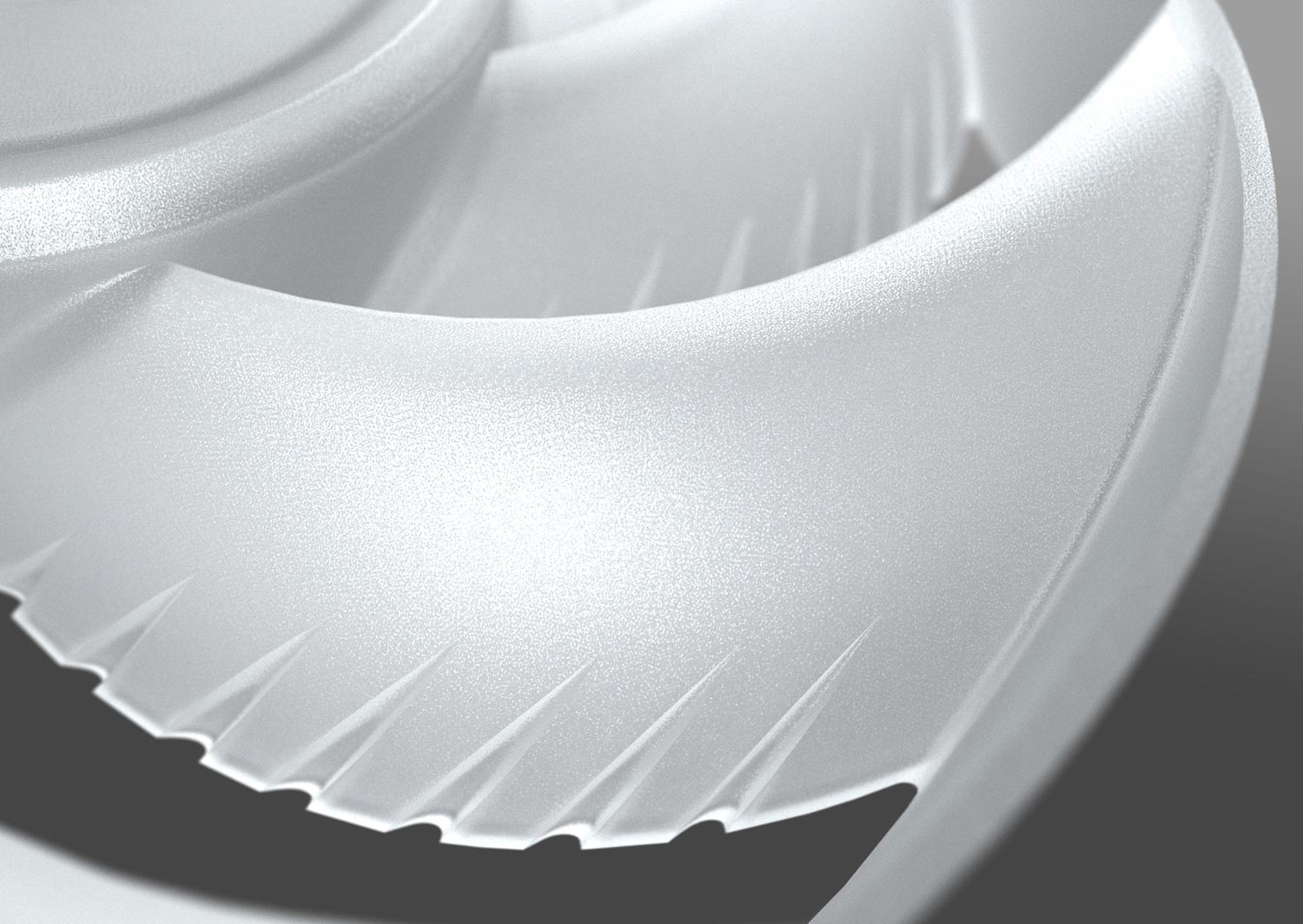

In regular fans, performance is inversely proportional to noise: the stronger the performance, the louder the fan. The Poseidon Ultra ARGB surpasses this conventional compromise to achieve an ideal ratio of performance to noise with a grooved impeller molded with an integrated stabilizing ring, minimizing flex and turbulence during rotation for optimal and silent cooling. Corner dampeners further suppress oscillation, reducing vibration noise.

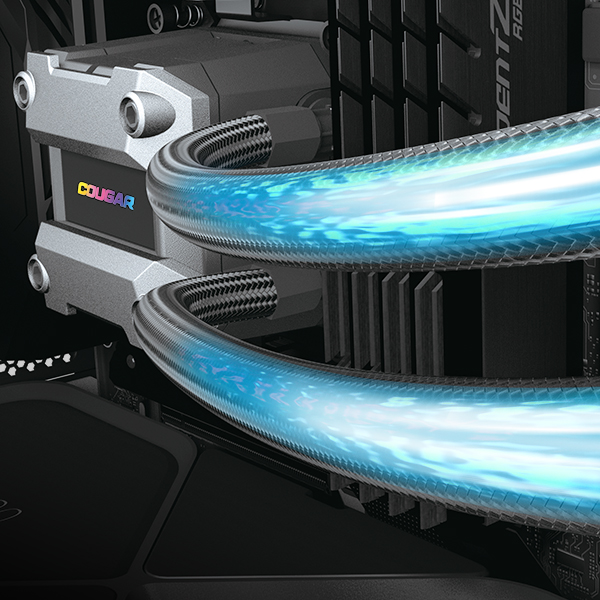

Cold Current

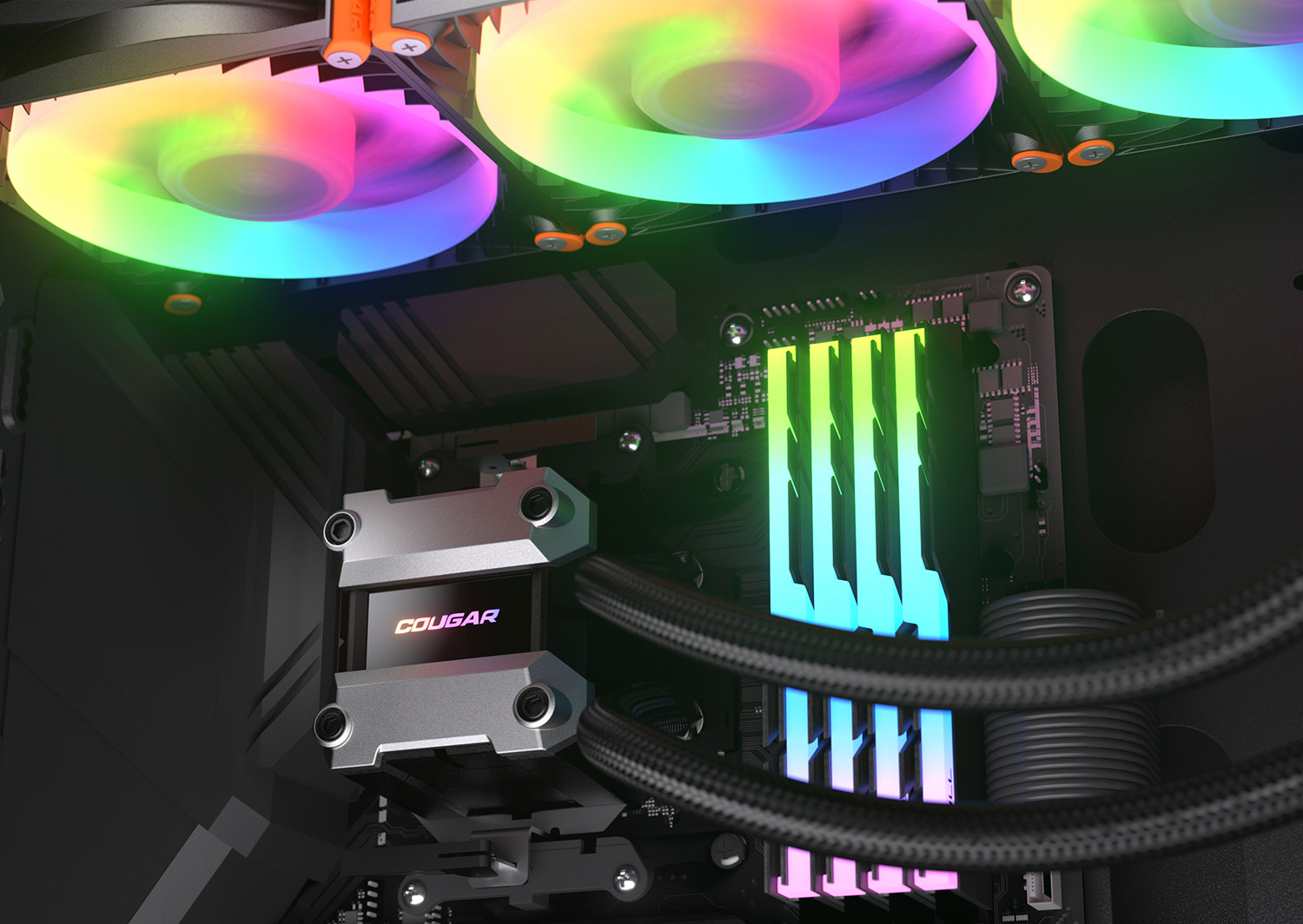

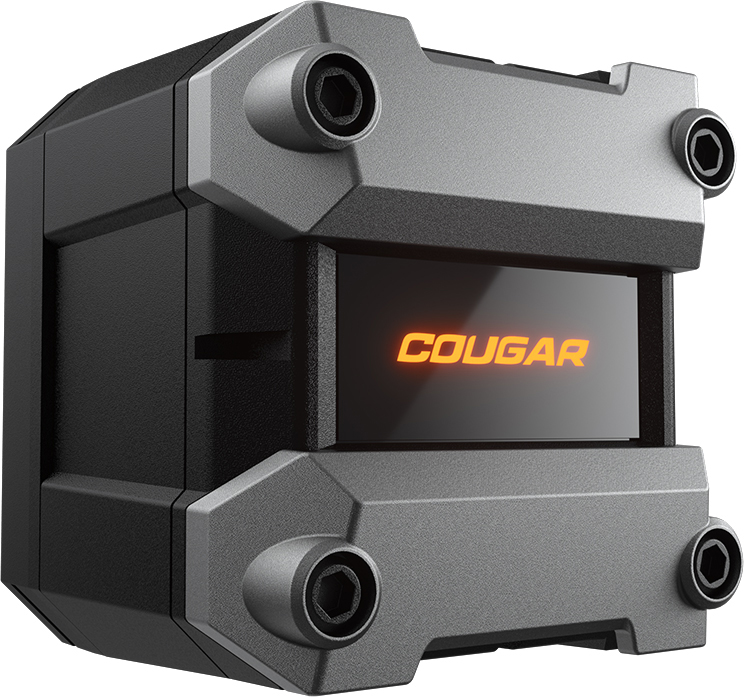

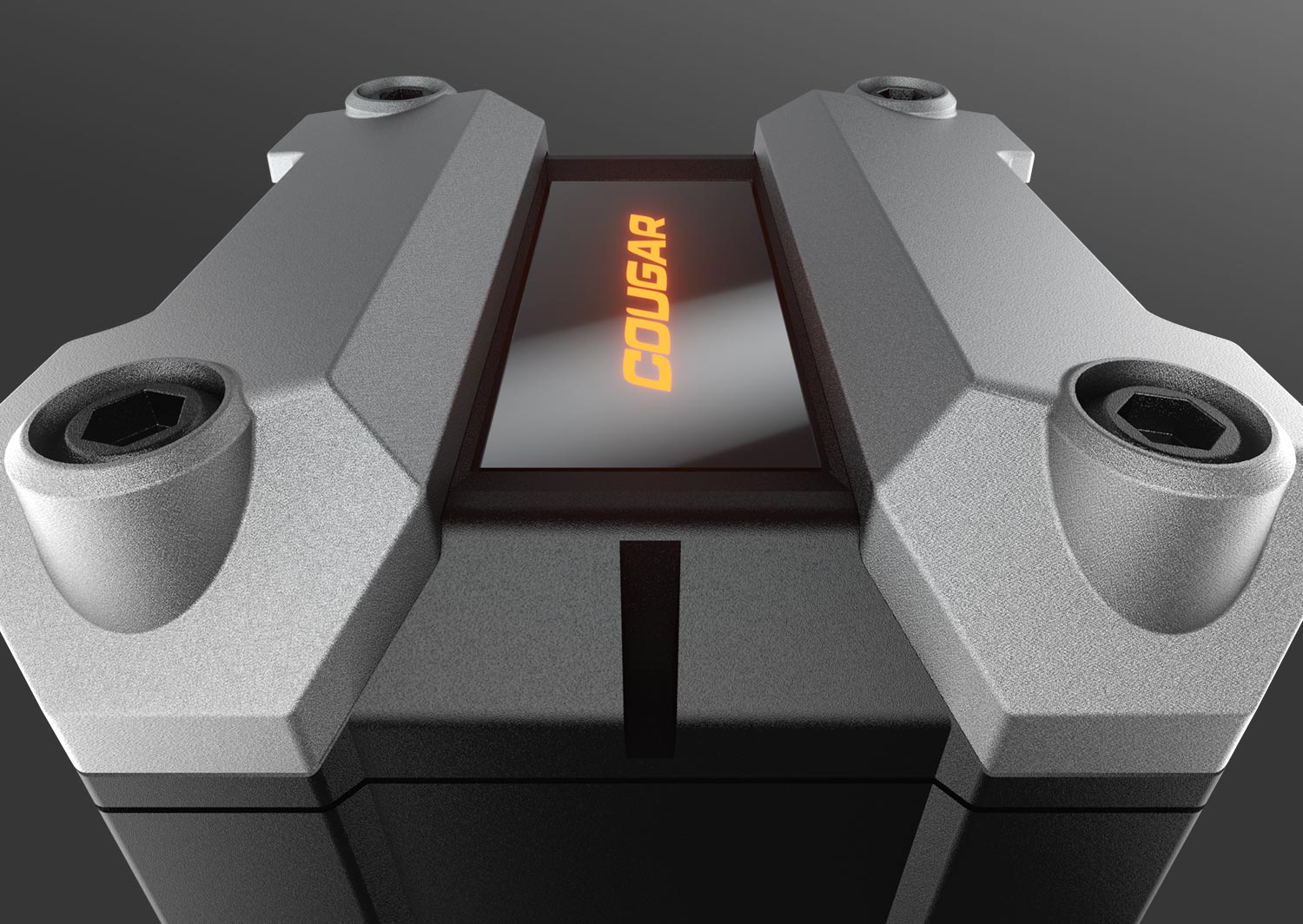

The Poseidon Ultra ARGB’s water cooling block raises the bar for liquid conduction tech.
25 % Boost
in coolant flow, enhancing the rate and volume of coolant delivery to active components.

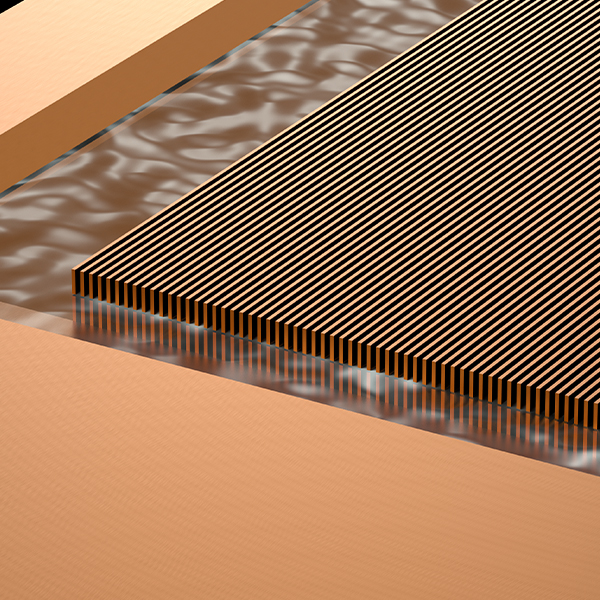

28% Increase
in cooling fin surface area, maxing out heat transfer contact area and heat transfer efficiency.

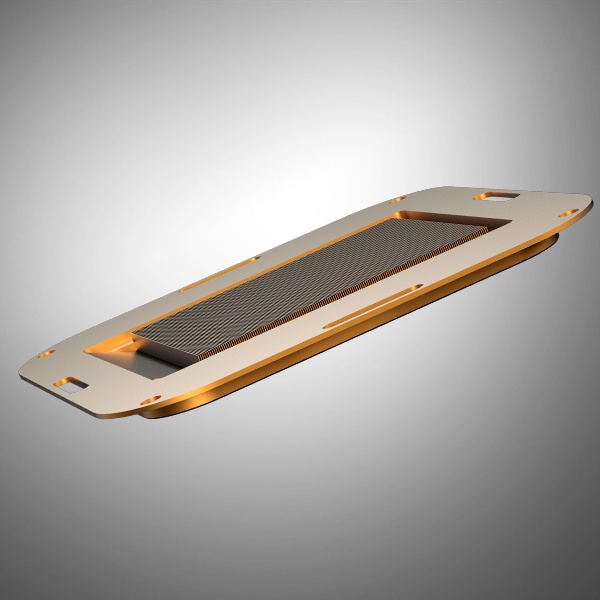

50% Reduction
in copper plate thickness achieves peak conduction.
25 % Boost
in coolant flow, enhancing the rate and volume of coolant delivery to active components.
28% Increase
in cooling fin surface area, maxing out heat transfer contact area and heat transfer efficiency.
50% Reduction
in copper plate thickness achieves peak conduction.

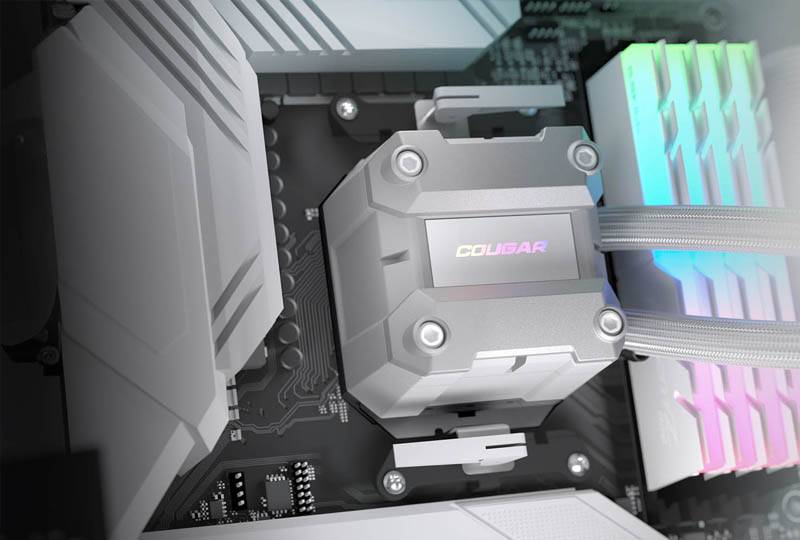

Cutting-Edge Compatibility
The Poseidon Ultra ARGB supports the latest AMD AM5 and Intel LGA1851 sockets and comes complete with all the mounting hardware to make installation a matter of mere minutes.
Cutting-Edge Compatibility
The Poseidon Ultra ARGB supports the latest AMD AM5 and Intel LGA1851 sockets and comes complete with all the mounting hardware to make installation a matter of mere minutes.

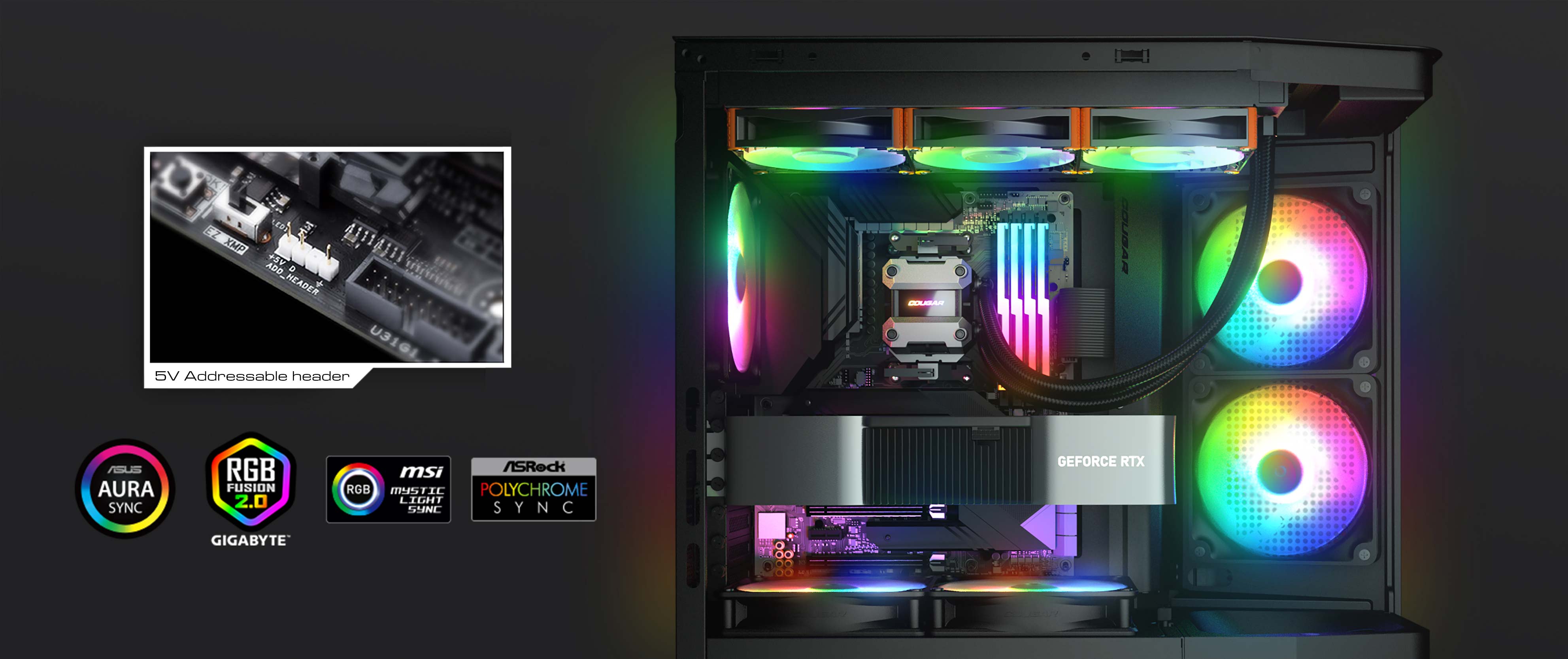

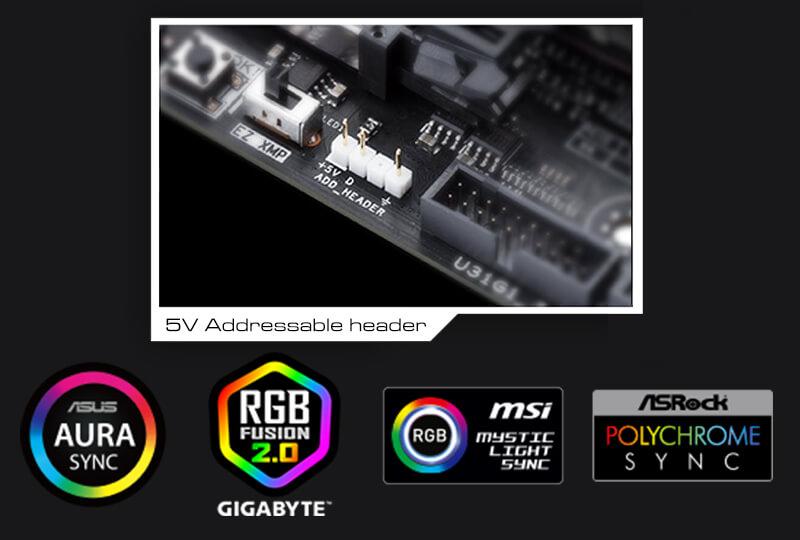

Control Fans & Lighting
with Motherboard Sync Software
The Poseidon Ultra ARGB is able to control ARGB lighting with motherboard software. Experience the next level of system-wide control.
5 Year Warranty
The Poseidon Ultra ARGB is protected by a 5 year warranty with a build quality second to none.
Specifications
| CPU Socket | Intel LGA1851 / LGA1700 / LGA1200 / LGA115X AMD AM5 / AM4 / AM3 / AM2 / FM2 / FM1 |
|
| Water Block & Pump | ||
| Dimensions (WxDxH) | 83.5 x 71 x 68mm | |
| Cold Plate Material | Copper | |
| Pump Speed | 3000 ± 10% RPM | |
| Rated Voltage | 12 VDC | |
| Rated Current | 0.23 A | |
| Power Consumption | 2.76 W | |
| Connector | Pump: 2510-3Pin Lights: 5V-ARGB 3Pin ARGB |
|
| Radiator | ||
| Dimensions (WxDxH) | POSEIDON ULTRA ARGB 240 : 277 x 120 x 27mm POSEIDON ULTRA ARGB 360 : 394 x 120 x 27mm |
|
| Material | Aluminium Alloy | |
| Tubing | ||
| Length | 400 mm | |
| Fans | ||
| Fan Quantity | POSEIDON ULTRA ARGB 240 : 2 POSEIDON ULTRA ARGB 360 : 3 |
|
| Dimensions (WxDxH) | 120 x 120 x 25 mm | |
| Fan Speed | 500-2200 RPM ±10% | |
| Air Flow | 64.95 CFM | |
| Air Pressure | 3.26 mmH2O | |
| Acoustic Noise | 32.1 dB(A) | |
| Power Consumption | 4.44 W (Fan) / 1.75 W (LED) | |
| Rated Current | 0.37 A (Fan) / 0.35 A (LED) | |
| Rated Voltage | 12 VDC (Fan) / 5 VDC (LED) | |
| Connector & Control | Fan : 2510-4Pin PWM Lights : 5V-3Pin ARGB |
|
