FV270

Through A Glass Brightly

There is no mystery without illumination; no function without form.
The prism-inspired, polyhedral perimeter of the FV270 mid-tower formed from tempered curved glass provides an unrivaled panoramic interior view of your build in full glory, while innovative angled cooling fan placements revolutionize airflow dynamics.
Facilitating backwards cable management and future-proofed for extreme builds with capacity to spare for bleeding-edge motherboards and GPUs, the FV270 is anything but another brick in the wall.

Type

  • Tempered, curved glass panoramic perimeter amplifies transparency and brilliance for an epic view.
  • Angled cooling fan placements focus airflow in uninterrupted, continuous streams.
  • Additional air intake accessed by lifted front.
  • Reverse cable management eliminates clutter.
  • Compatible with bleeding-edge E-ATX motherboards and accommodates 420mm GPUs, with rotatable brackets for horizontal/vertical orientation options.
  • Strategically positioned and easily removable filters guard against dust.
  • Easily detachable top and bottom brackets streamlines setup.
  • Tempered, curved glass panoramic perimeter amplifies transparency and brilliance for an epic view.
  • Angled cooling fan placements focus airflow in uninterrupted, continuous streams.
  • Additional air intake accessed by lifted front.
  • Reverse cable management eliminates clutter.
  • Compatible with bleeding-edge E-ATX motherboards and accommodates 420mm GPUs, with rotatable brackets for horizontal/vertical orientation options.
  • Strategically positioned and easily removable filters guard against dust.
  • Easily detachable top and bottom brackets streamlines setup.
PC Crazy
PC Crazy
Read More

Efficiency, cooling and look as well. This is COUGAR AIRFACE ECO RGB MIDI tower case that has three easy removable dust filters, different and unique coned vents.

JayzTwoCents
JayzTwoCents
Read More

PC Cases just seem to be copy and paste of the SAME designs over and over... which is why this case is exciting because Cougar actually did some things that no other brand has done before!

Tech Notice
Tech Notice
Read More

We're going to be taking a look at this case here. This is the COUGAR FV270 and it's a pretty unique case so let's take a look at what it offers, what it can do, and some of the special features.

Robeytech
Robeytech
Read More

The FV270 really does take the best and most unique features of those cases and then they've made something incredible out of all of it.

Christopher Flannigan
Christopher Flannigan
Read More

A full step by step guide to building a PC in the Cougar FV270. This guide assumes no previous knowledge and is perfect for a first time PC builder.

Christopher Flannigan
Christopher Flannigan
Read More

I really tried to find something I didn't like about the FV 270 but unfortunately Cougar has done a bloody good job on this case and I got to take my hat off to them this is a really really nice case and one of the nicest cases that I've seen in a long time.

Previous
Next
Breathe

Harmonizing form with function, the FV270’s polyhedral design sets a new standard for airflow dynamics. Placing cooling fans on angled faces ensure uninterrupted, focused streams and the lifted front accesses an additional axis of ventilation, allowing air intake from below.

Angled Cooling Fan Placements Focus Airflow in Uninterrupted,
Continuous Streams.

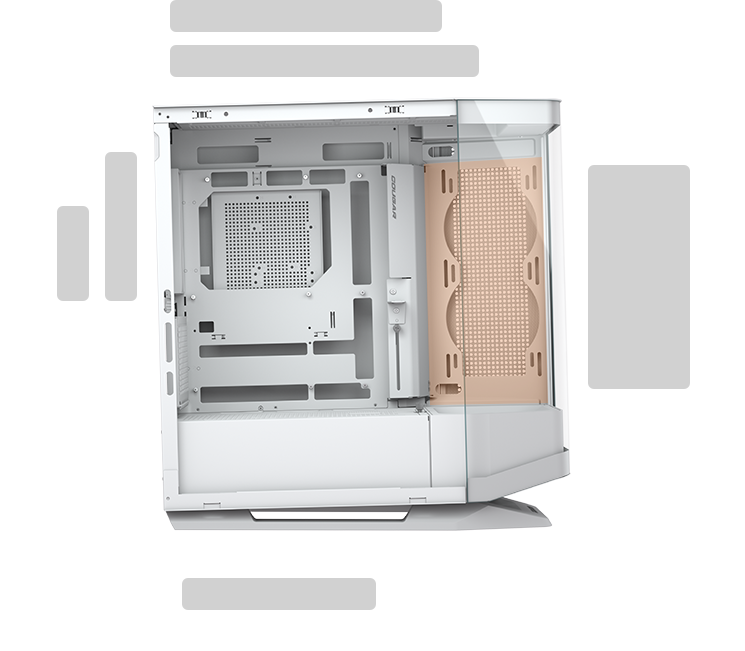

Water cooling radiator support

FV270-section-03-1-2

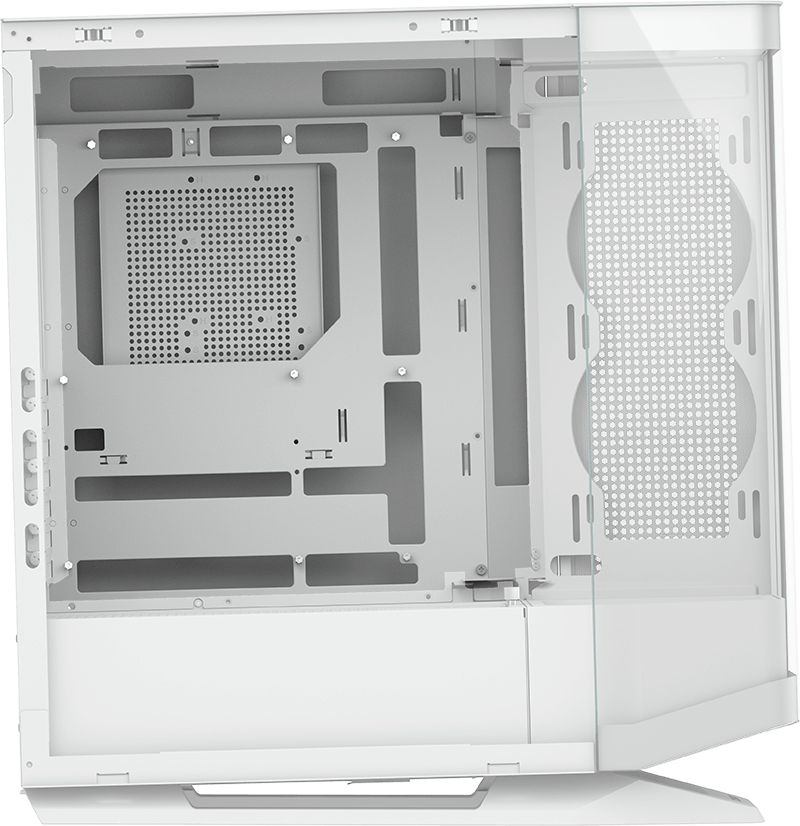

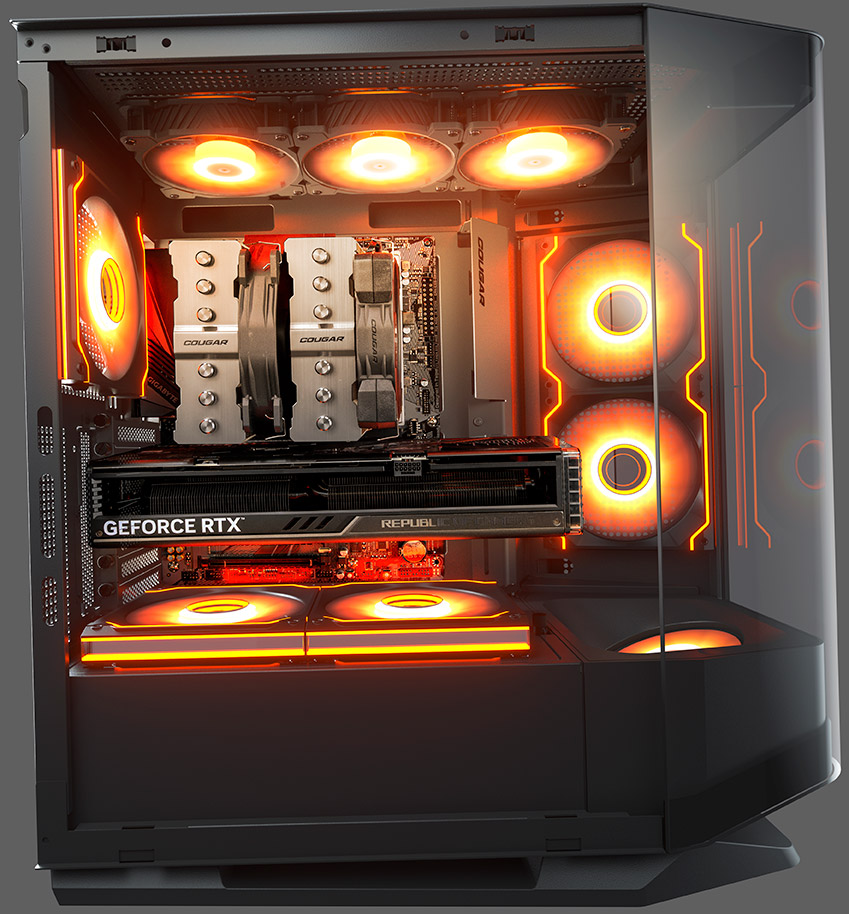

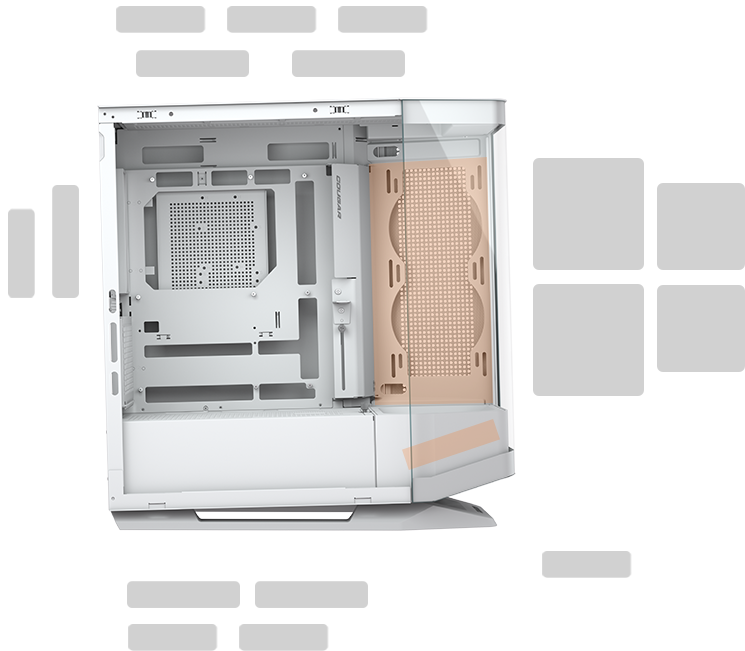

Air cooling support

FV270-section-03-2-2

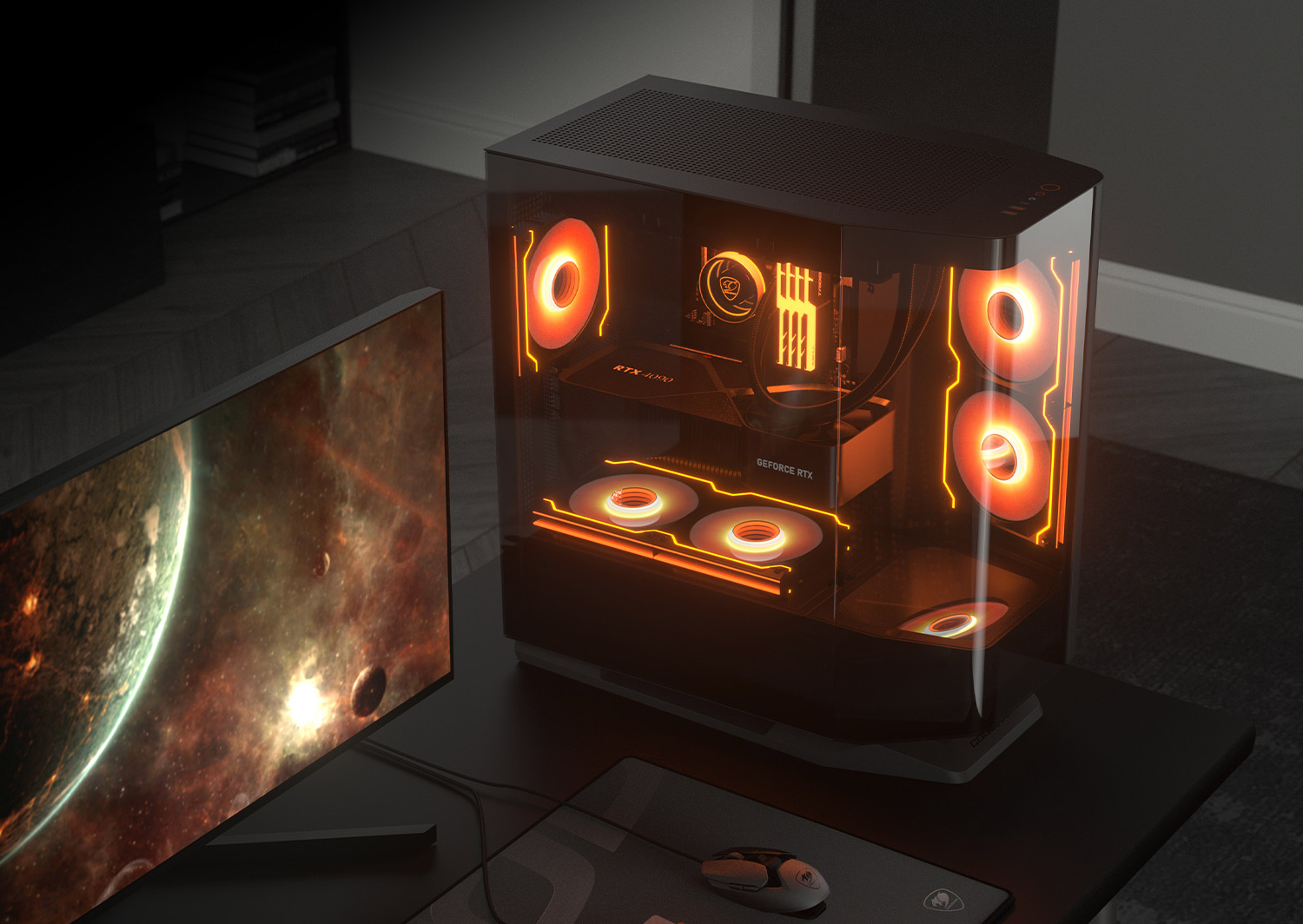

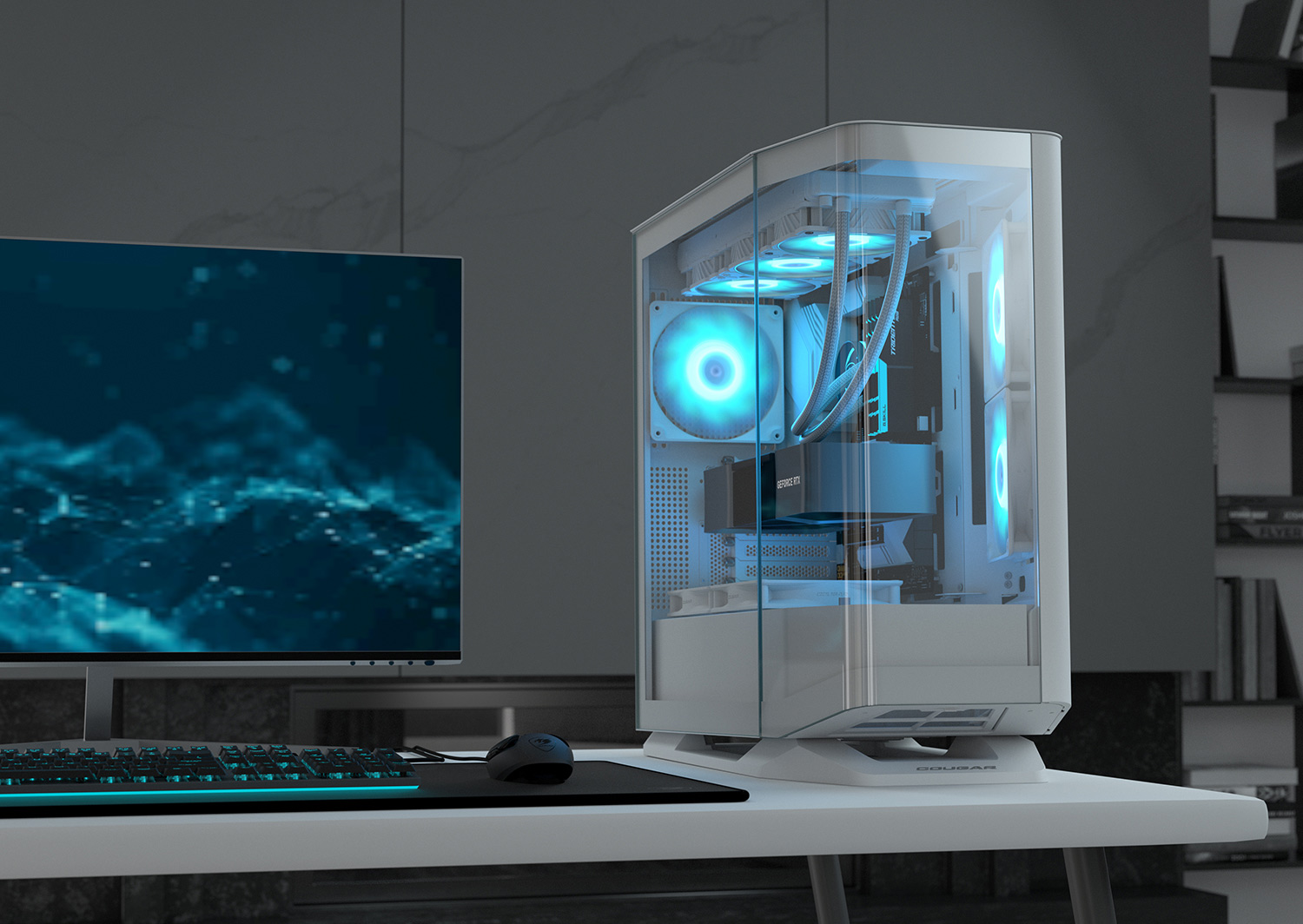

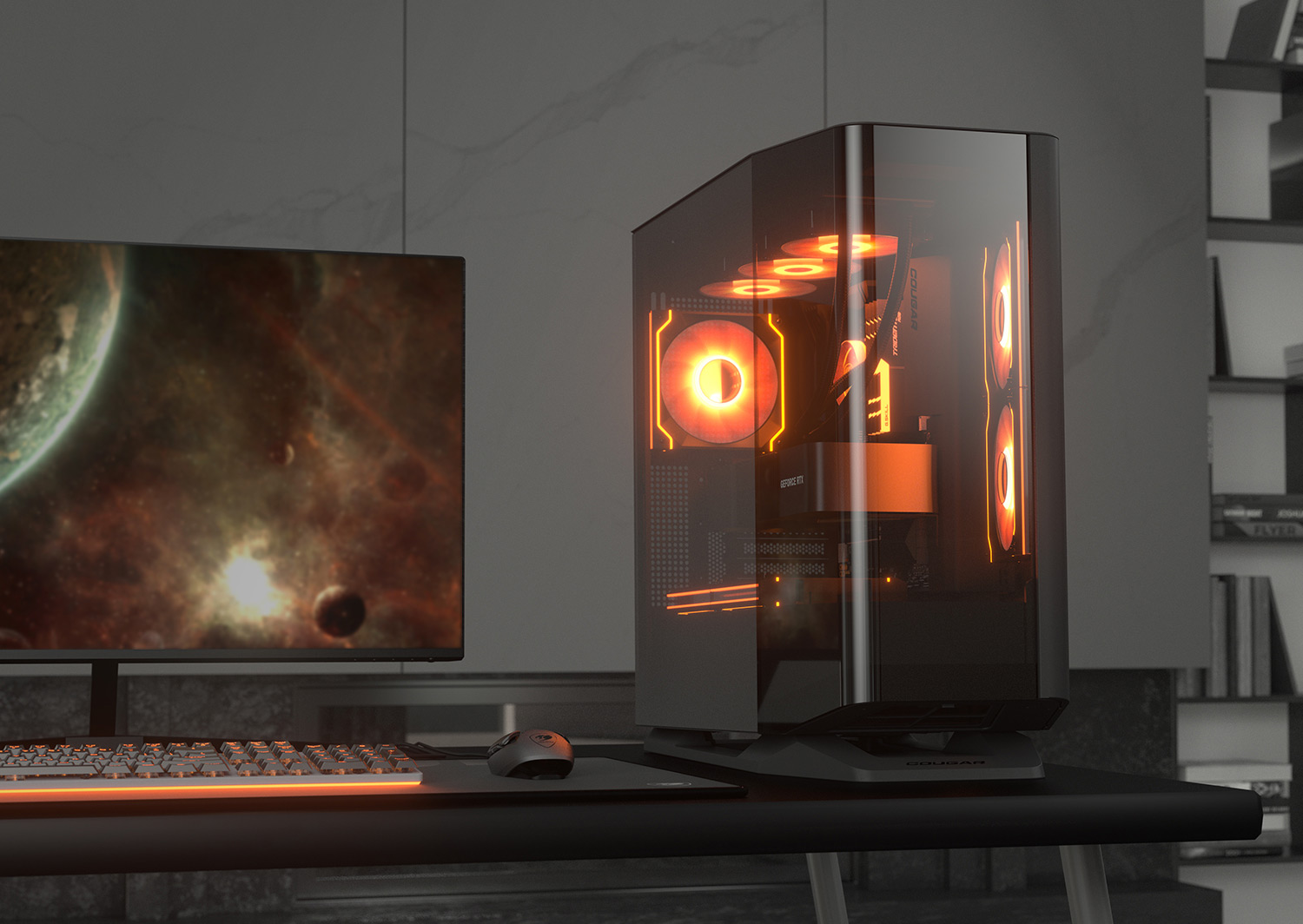

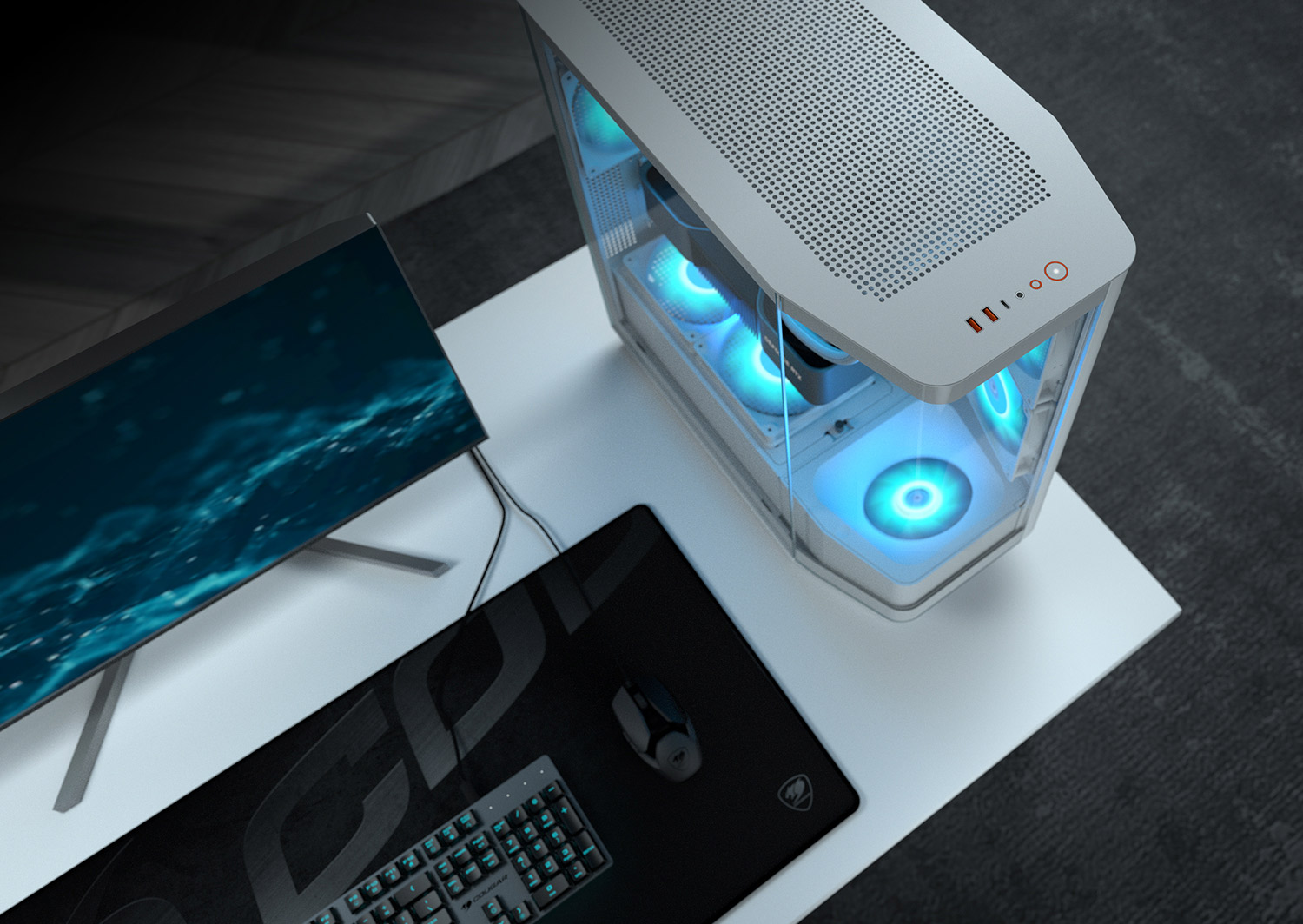

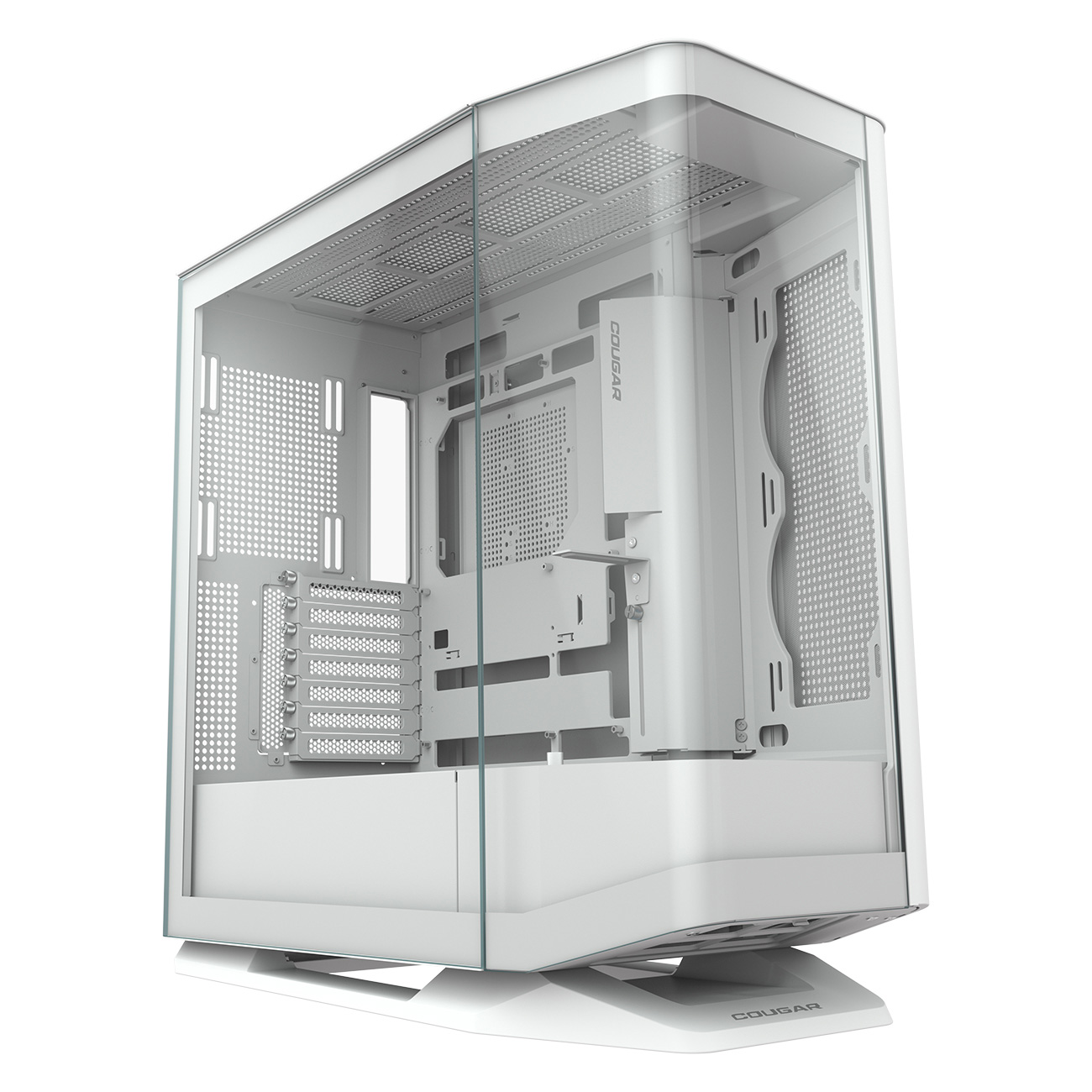

Prism of Light

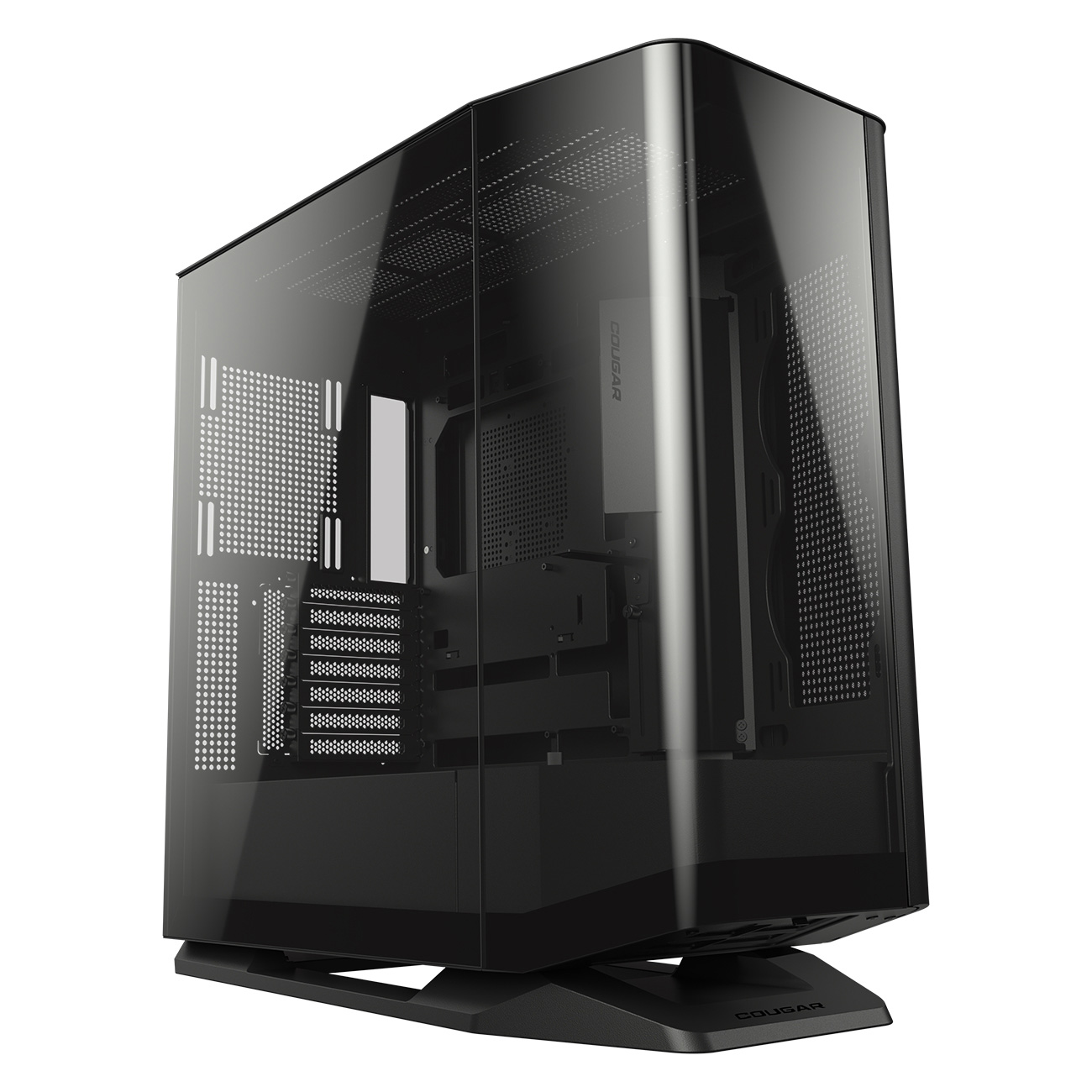

The FV270 offers an unparalleled panoramic view of the interior with a tempered, curved glass perimeter. Unlike rectangular cases, this prism-inspired design eliminates obstructive straight edges and vastly increases transparency, amplifying both visibility and lighting brilliance.
Outside the Wall

Support for reverse cable management conceals cable clutter behind the reverse side of the motherboard, covered by a solid side of the FV270. The clean exterior lets your components shine without distraction – literally.

*Supported models: ASUS BTF, GIGABYTE PROJECT STEALTH, and MSI Project Zero.

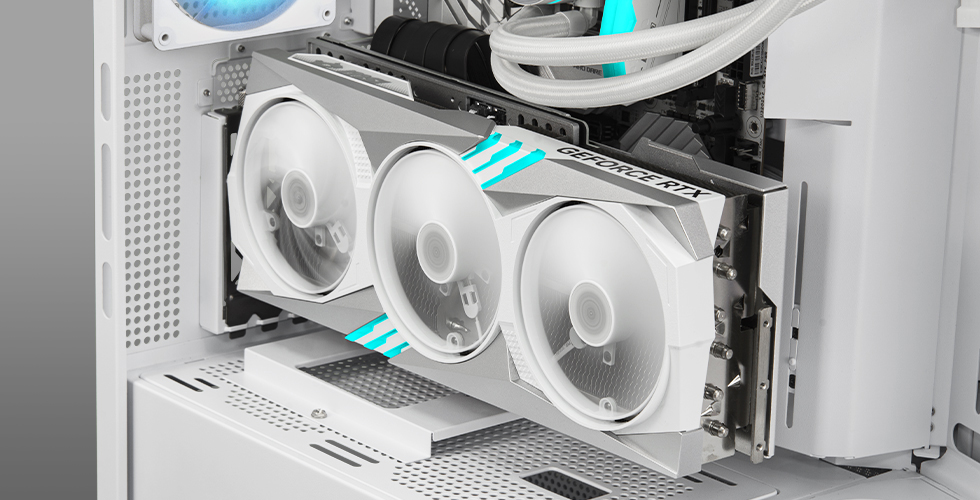

Tomorrow, Today
With broad compatibility for bleeding-edge E-ATX motherboards and accommodating GPUs of up to 420mm with rotatable brackets for horizontal/vertical orientation options, the FV270 is engineered for the gaming rigs of the future. Create without limit, build without constraints, and stay ready for the next gen of tech.

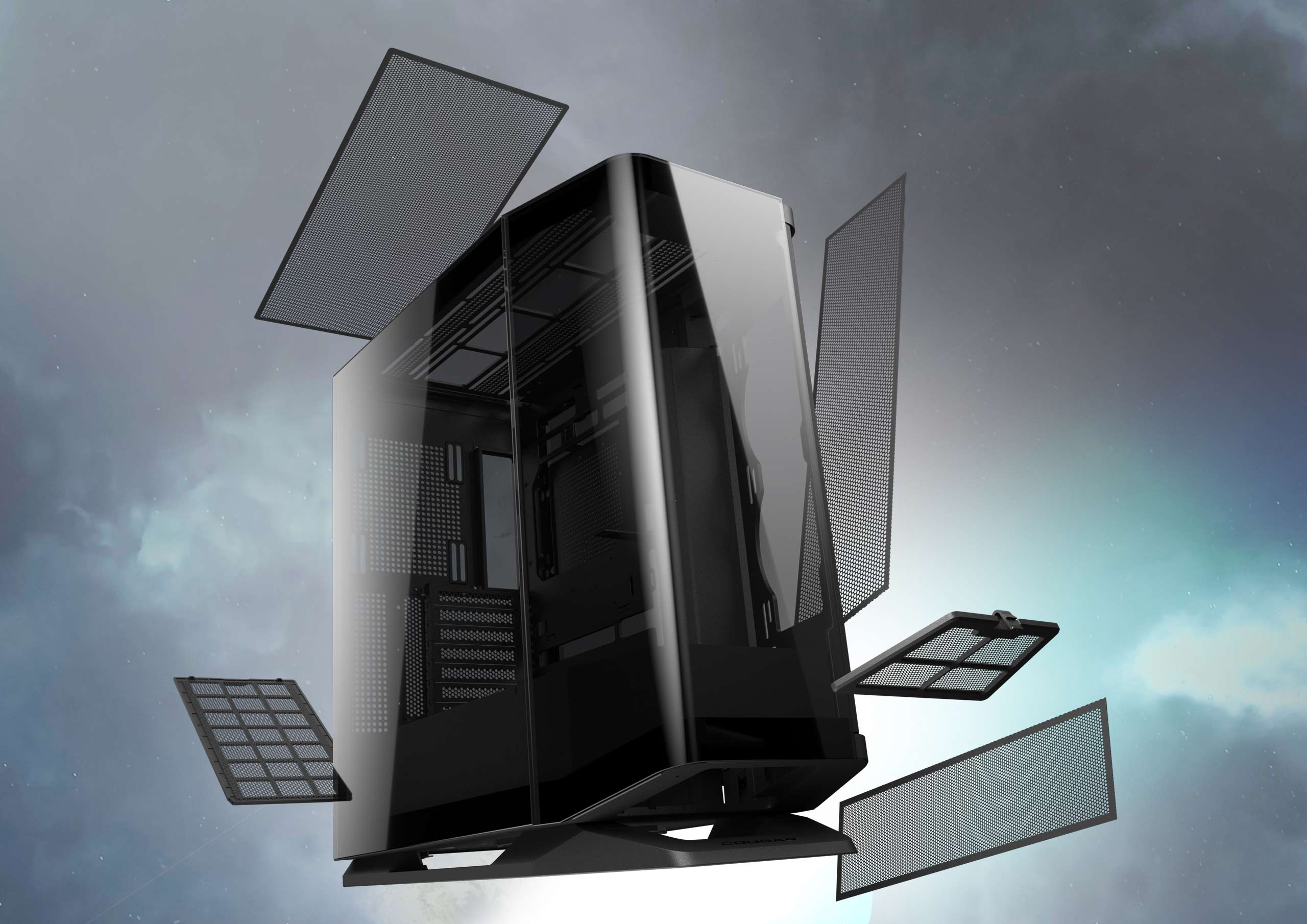

Security Detail
Strategically positioned and easily removable filters guard against dust infiltration and shields vital components. This comprehensive filtration prolongs the longevity of your hardware, minimizing maintenance efforts and preserving the pristine condition of your PC.

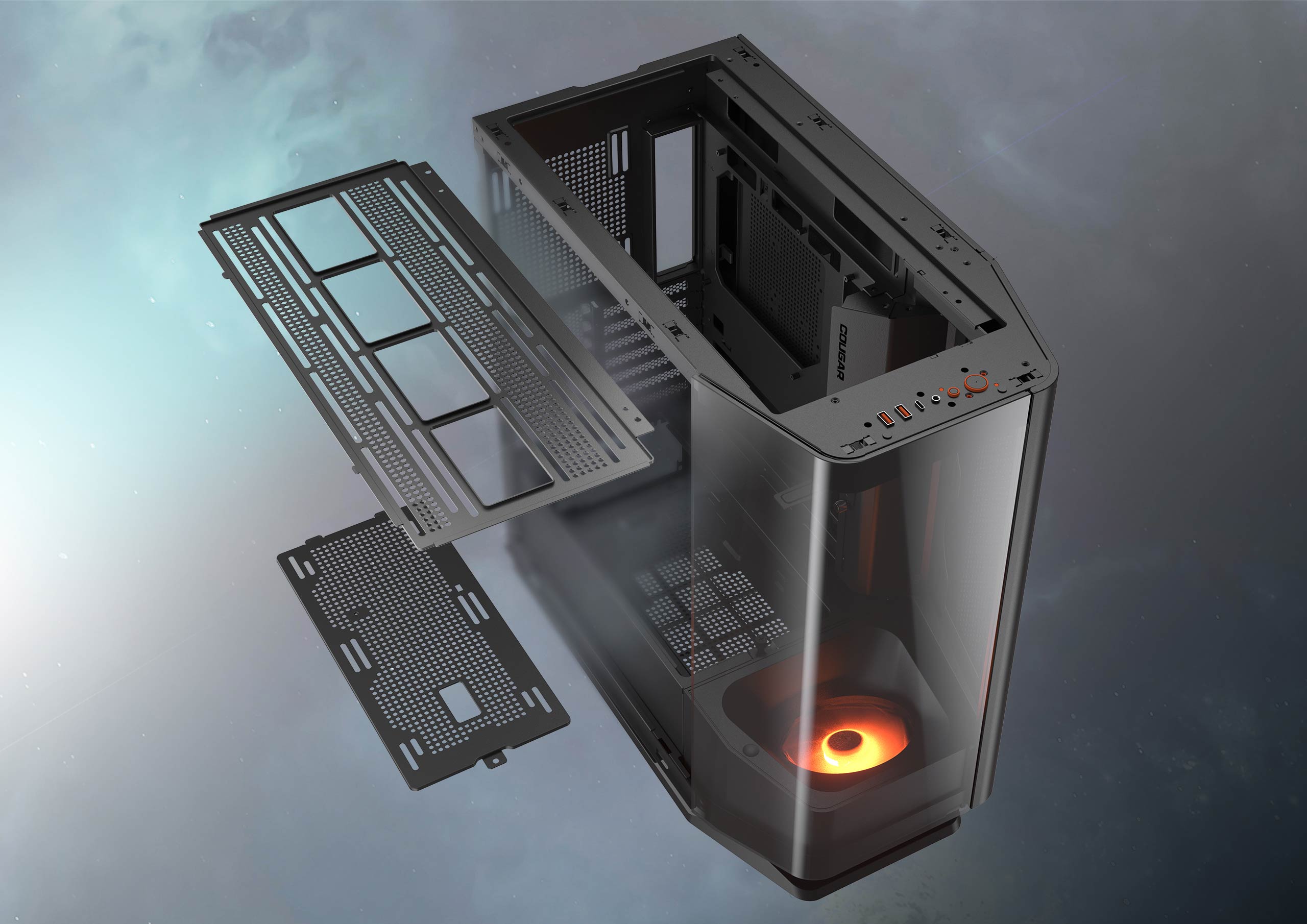

Quick Change
Tool-less bracket design streamlines setup: easily detachable top and bottom brackets lets you install or change without hassle and opens up interior space.

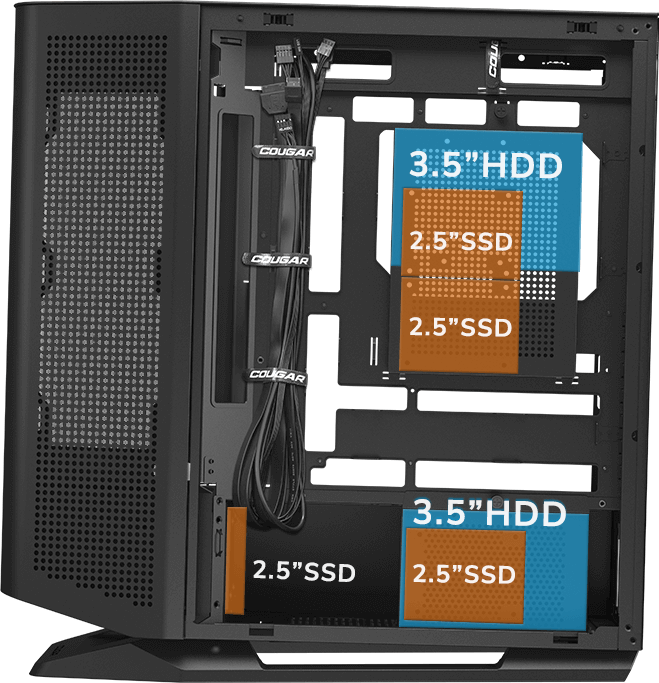

Full House
The FV270 can house up to 4 x 2.5” SSD drives and 2 x 3.5” HDD drives.

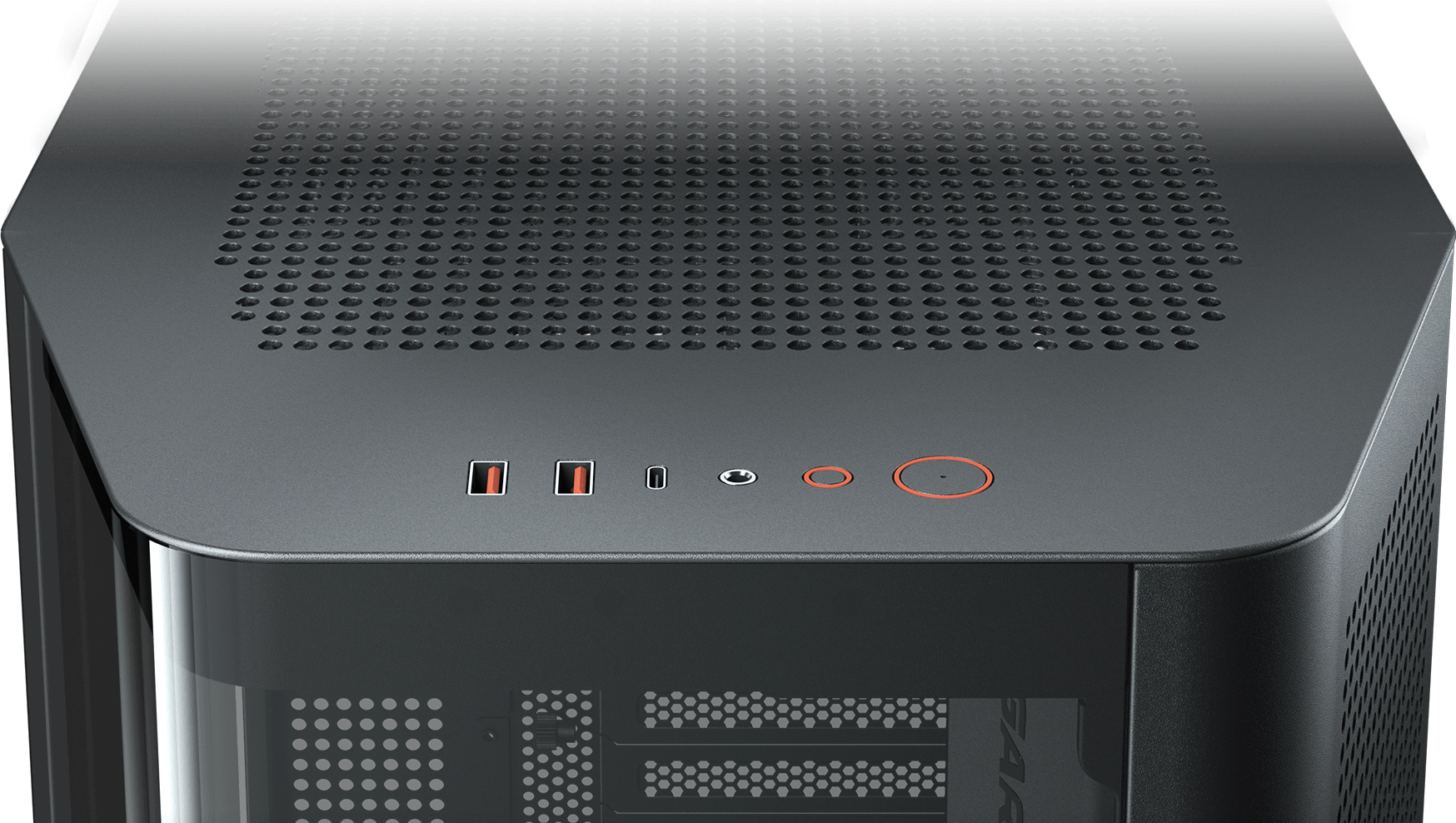

Peripheral Vision

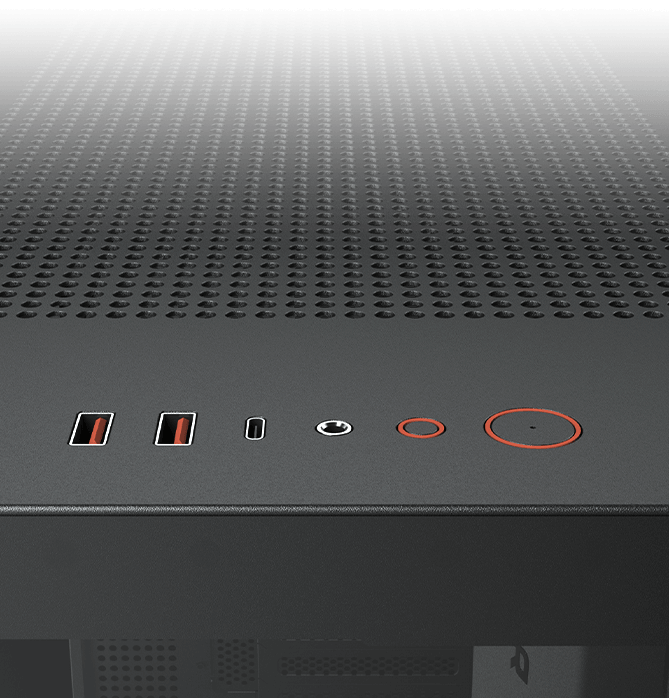

The FV270 I/O panel includes 2 x USB 3.0 and 1 x USB-C ports.
Center Stage
An optional mounting platform – designed to showcase your prized collectibles within the panoramic interior – offers a dedicated space for hobby figurines, turning your PC into a personalized gallery.
**Accessory not included, available for separate purchase.
Rotating platform weight limit: 1kg

Through A Glass Brightly

Specifications

Product Name FV270 / FV270 (White)
Case Form Factor Mid Tower
Motherboard Type Mini ITX / Micro ATX / ATX / CEB / E-ATX
Dimensions (WxHxD) 268 x 530 x 512 (mm)
10.6 x 20.9 x 20.2 (in)
I/O Panel Type C Gen 2 x 1, USB 3.0 x 2, 4 Pole Headset Audio Jack, Reset Button
3.5" Drive Bay 2
2.5" Drive Bay 2+2 (converted from 3.5" drive bays)
Expansion Slots 7 (horizontal slots can be converted into vertical slots)
Vertical GPU Support Yes
Cooling Fan Support Top 120mm x 3 / 140mm x 2
M/B Side 120mm x 2 / 140mm x 2
PSU Shroud 120mm x 2 / 140mm x 2
Bottom 120mm x 1
Rear 120mm x 1 / 140mm x 1
Pre-installed Fans Bottom 120mm Reversed ARGB PWM fan x 1
Speed 500-1200 ± 10%
Connector 5V 3 Pin (ARGB) / 4 Pin (Fan)
Maximun Number of Fans 9
Water Cooling Support Top 360mm / 280mm / 240mm / 140mm / 120mm
M/B Side 280mm / 240mm / 140mm / 120mm
PSU Shroud 240mm / 120mm
Bottom -
Rear 140mm / 120mm
RGB Sync with M/B Yes
Max. Graphics Card Length Horizontal 420 (mm) / 16.5 (in) (Only fans at the M/B Side)
330 (mm) / 13 (in) (Radiator with fans at the M/B Side)
Vertical 450 (mm) / 17.7 (in)
Max. CPU Cooler Height 180 (mm) / 7.1 (in)
Max. PSU Length 250 (mm) / 9.8 (in)
FV270 FV270 (White)
Product Number (P/N) 3858M60.0001 3858M60.0002
Model No. CGR-58M6B CGR-58M6W
EAN CODE 4710483777202 4710483777219
UPC CODE 192554007328 192554007335
JAN CODE 4541995038235 4541995038242
Individual Size W/O Packaging Weight (N.Weight) 13.95 (kg)
Individual Packaging Weight (G.Weight) 16.45 (kg)
Individual Size W/O Packaging (WxHxD) 268 x 520 x 538 (mm)
Individual Packaging Size (WxHxD) 345 x 595 x 604 (mm)
