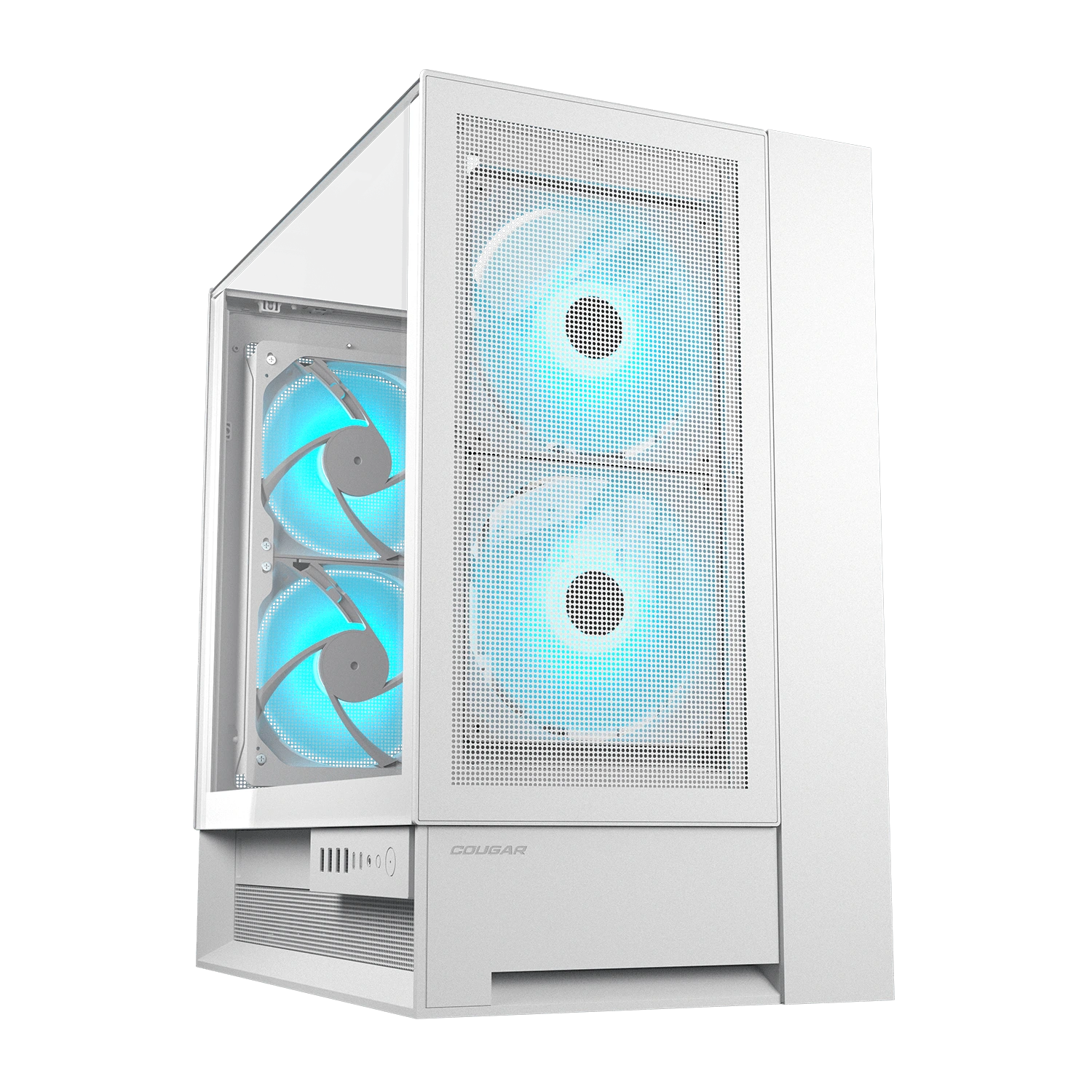

OmnyX

Your Build. Your Vision. Any Side You Like.
The OmnyX gives you the power to play, create and perform with unprecedented flexibility. Experience true freedom of orientation and maximum airflow with COUGAR’s revolutionary Omnidirectional Dynamic Flow System. Take a side, and showcase your masterpiece.

Type

  • Perfectly symmetrical design allows for omnidirectional placement.
  • Quad 160mm PWM fan support with flexible intake modes.
  • Integrated base compartment revolutionizes zero-visibility cable management.
  • Sliding rail system allows for IO module relocation and expanded port array.
  • Natural alignment of vertically mounted GPU with gravity reduces risk of damage from displacement.
  • Accommodates a maximum GPU length of 380mm.
  • Compatible with reverse connector motherboards.
  • Magnetic dust filter panel and quick release cable management compartment covers make maintenance a breeze.

Omnidirectional Dynamic Flow System (ODF)

The Omnidirectional Dynamic Flow System, is a groundbreaking new PC chassis structure developed by COUGAR, built around powerful airflow, creative flexibility and the perfectly equal viability of right, left and center orientations.
Locking in an absolute mirrored front and rear fan capacity maximizes the surface area of the GPU in contact with constant, maximum airflow, irrespective of the case’s orientation.

The ODF System’s symmetrical layout facilitates the ability to flow seamlessly between different orientations, maintaining the full functionality of position-dependent features.

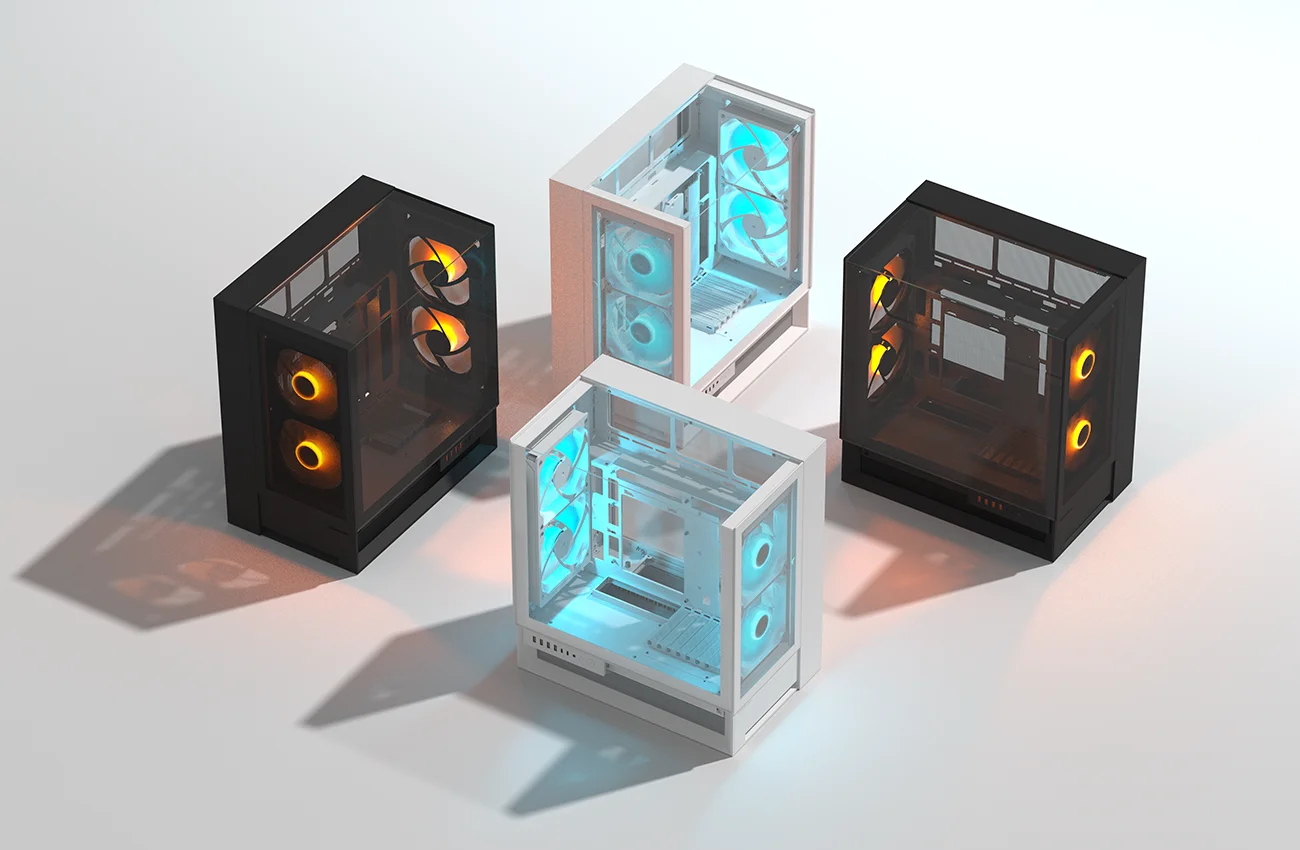

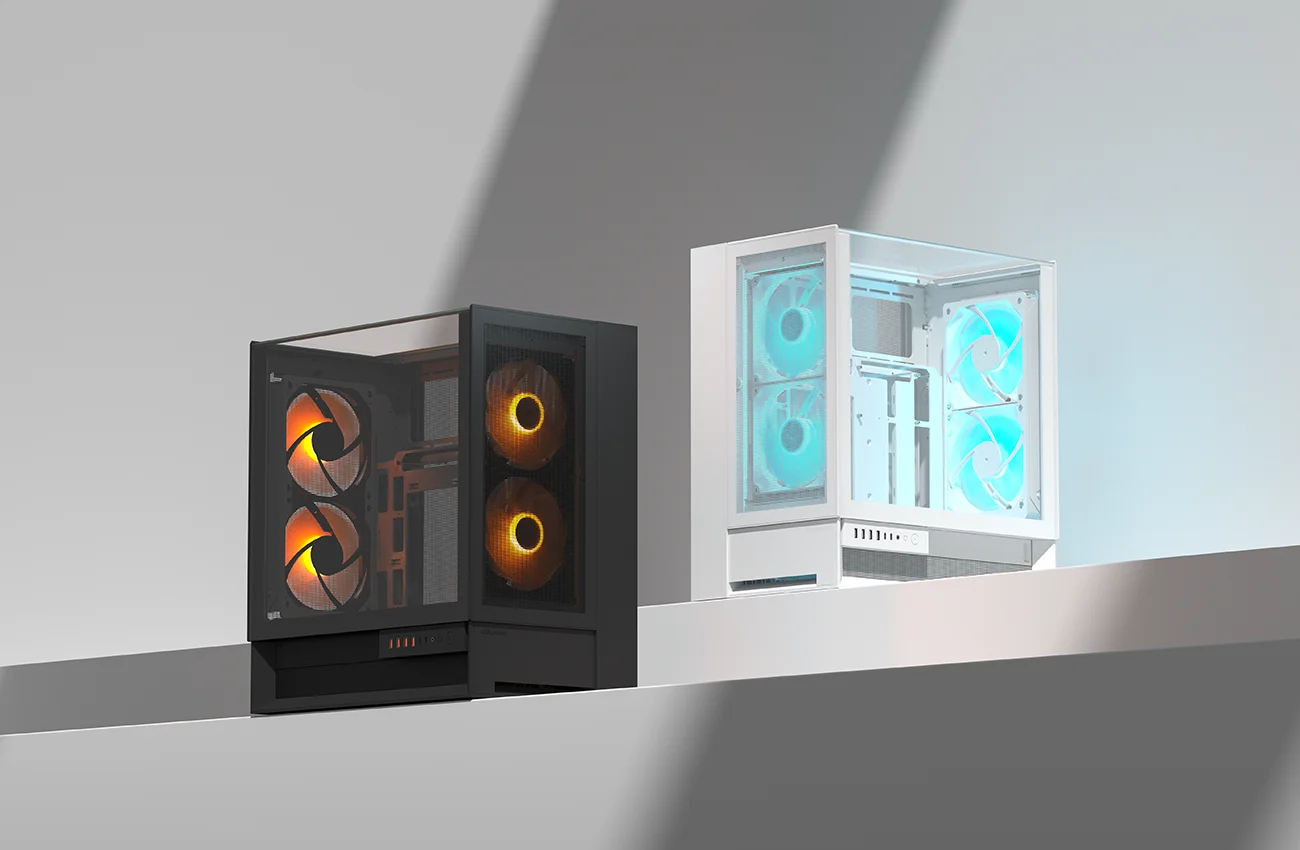

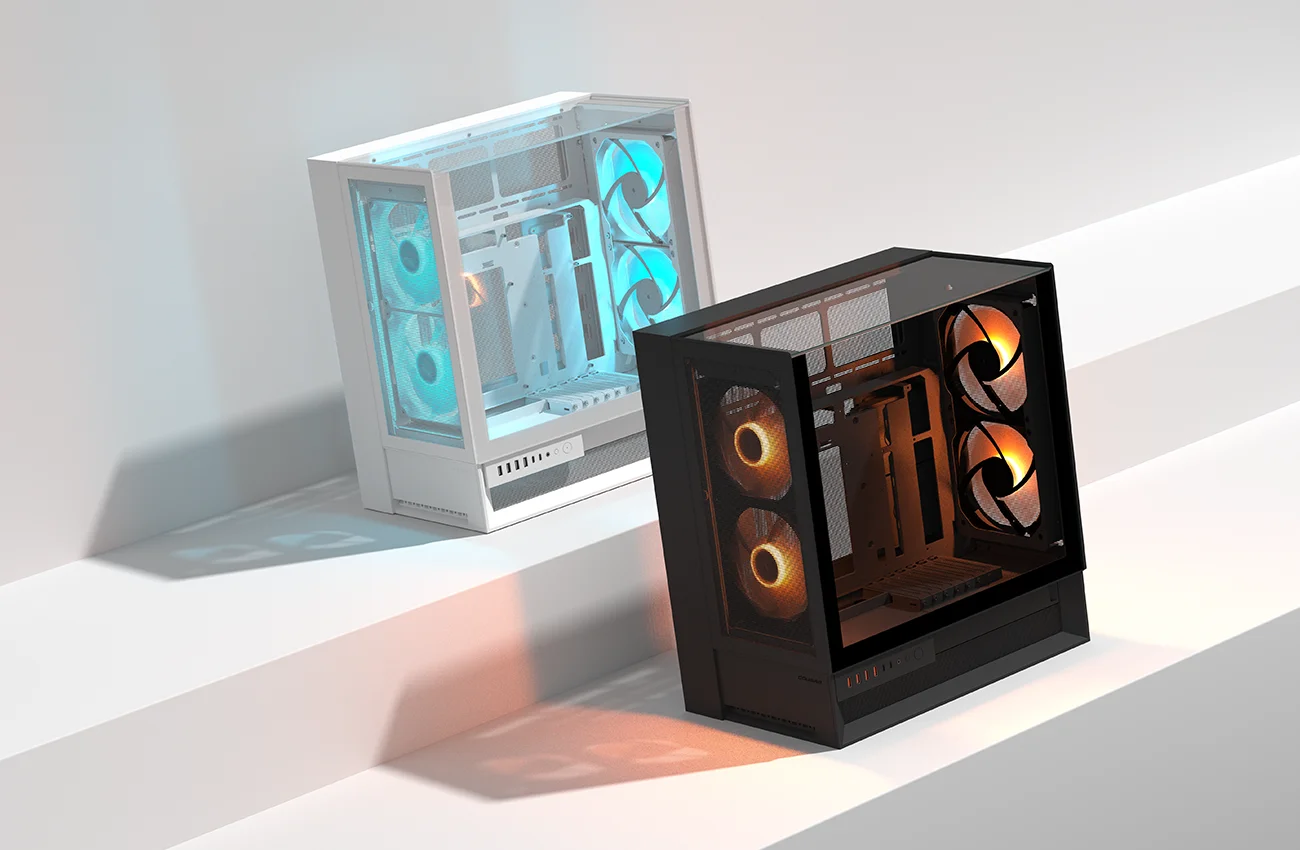

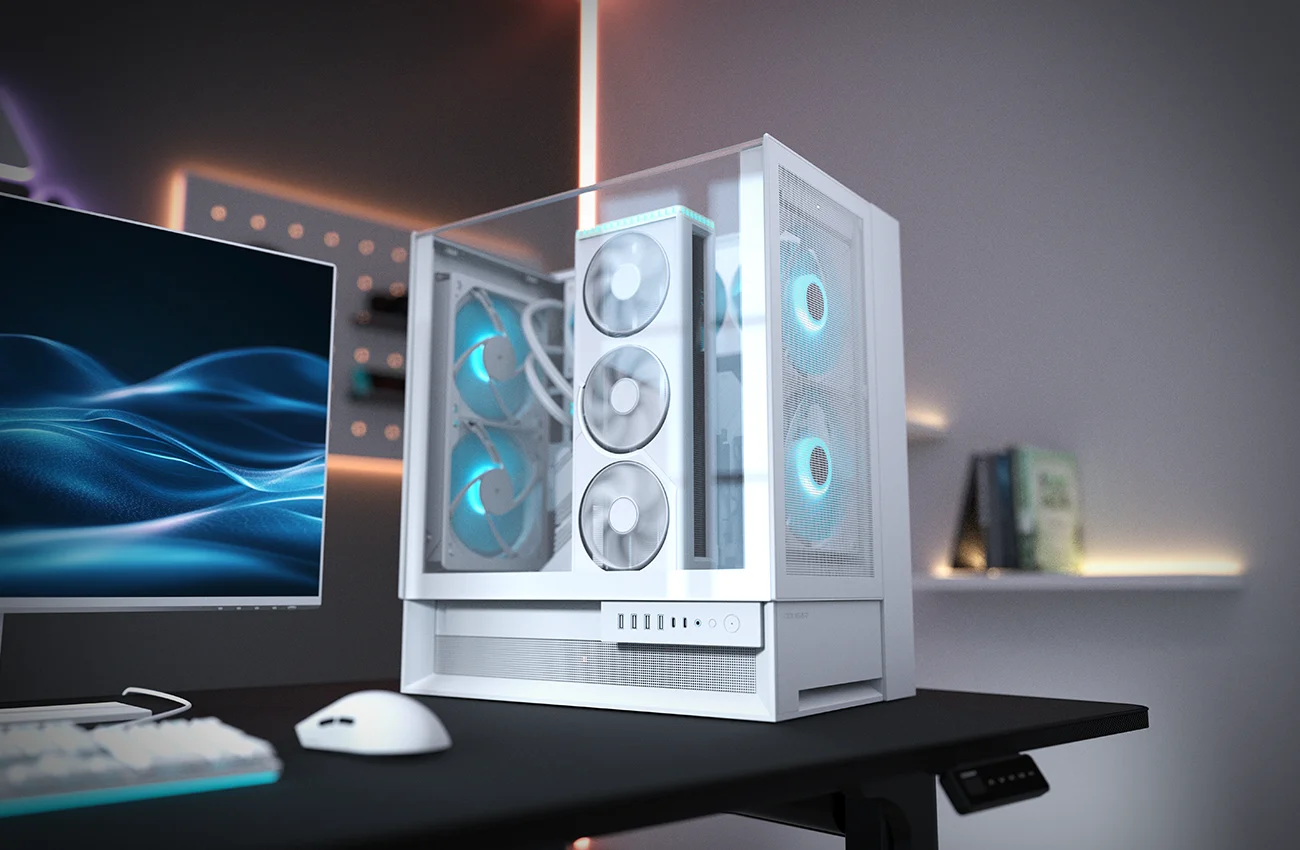

Take A Side

A perfectly symmetrical design makes for complete freedom of orientation. With dual transparent glass panels putting your build on display from any angle, the OmnyX looks stunning whether it’s placed on the right, left, or center.

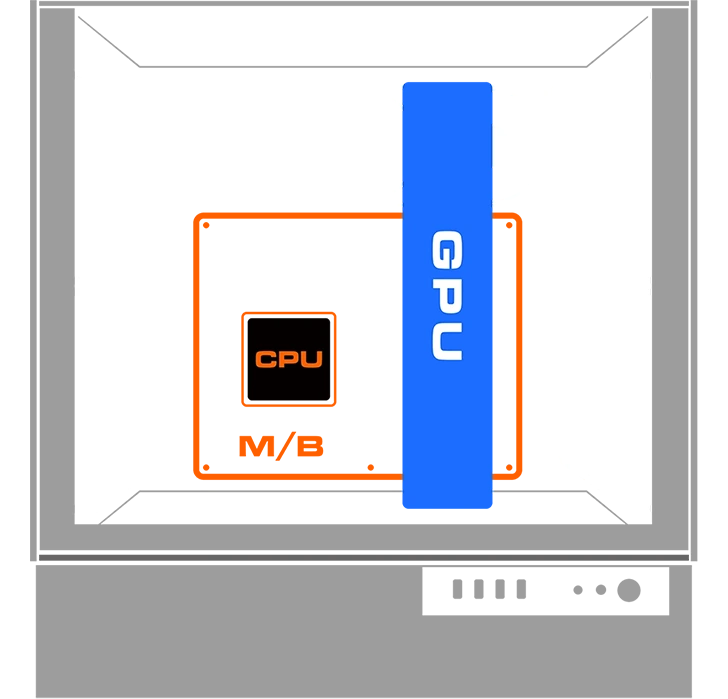

Bigger Fans. Jetstream Cooling.
The first ever – and only- PC case on the market with preinstalled quad 160mm PWM fans, the OmnyX delivers superior airflow straight out of the box, with room for a total fan capacity of 7. The mirrored front-to-rear alignment creates a naturally strong jetstream effect, with two front-mounted fans drawing in cold air and two rear-mounted fans expelling hot air in a direct, uninterrupted path. An equal distribution of reverse and forward blade fans allow for flexible intake modes, creating a smooth, directionally consistent airflow no matter how you choose to orient your build.

Benchmarked at an ambient temperature of 19°C using a consumer-style build with the latest-gen components, the OmnyX achieves an average thermal performance advantage of 8% over conventional case designs.

OmnyX

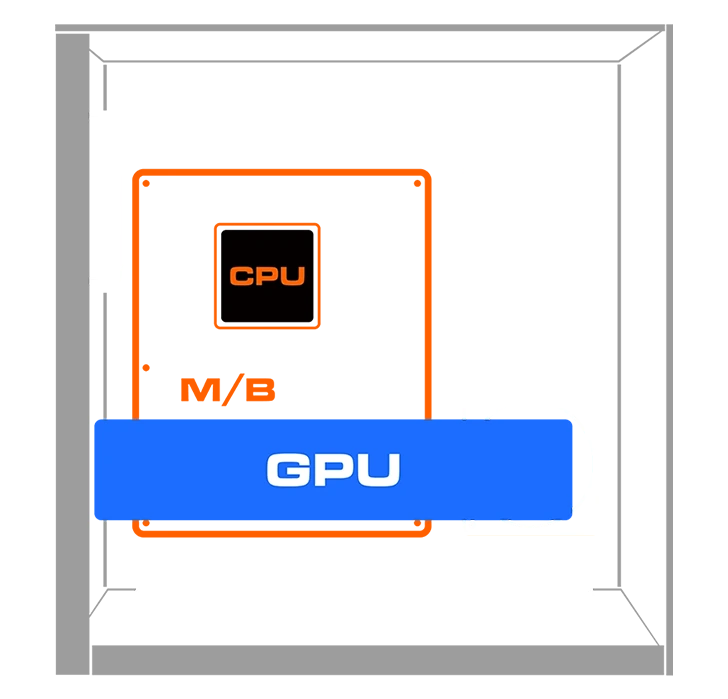

Panoramic view layout
Conventional tower layout

Test results will vary according to environmental factors

8%

average thermal performance advantage

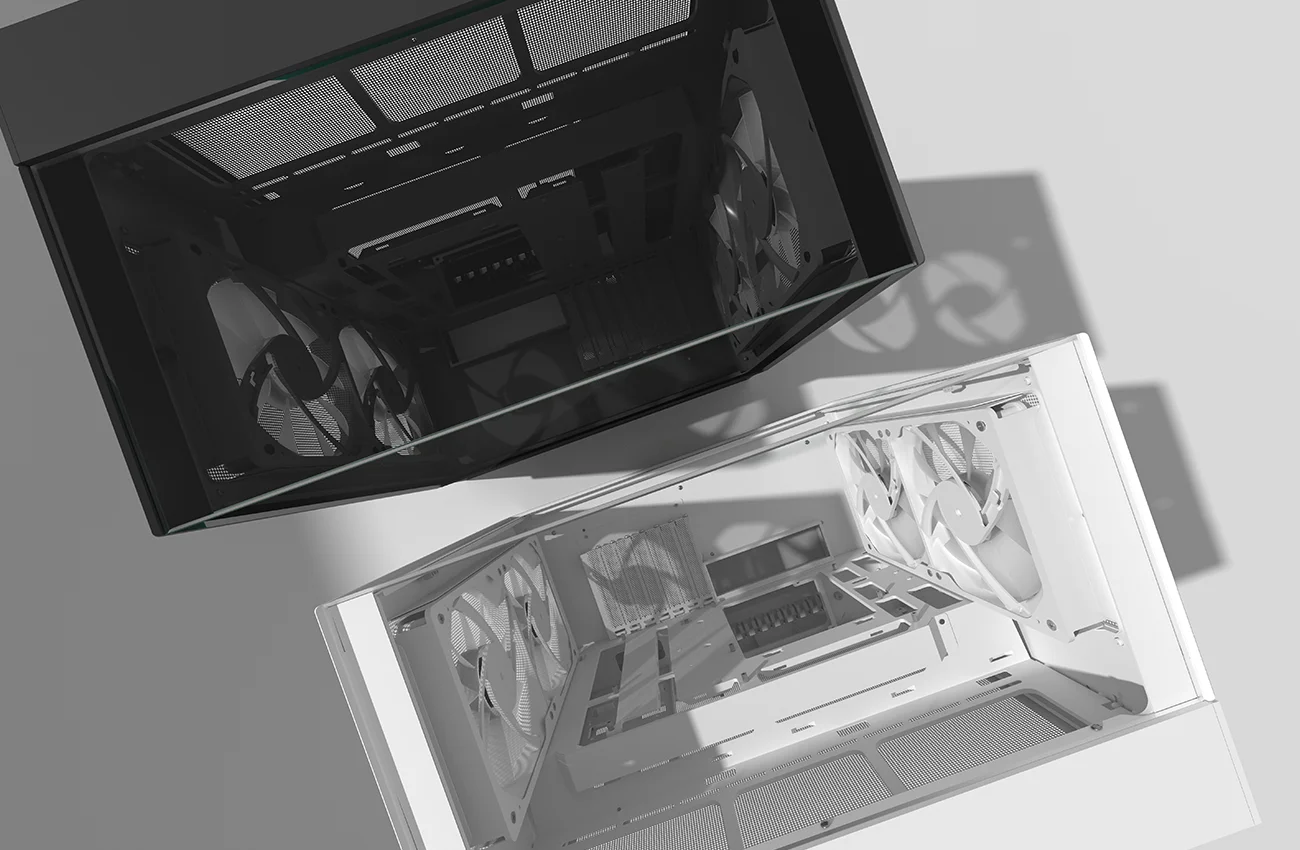

Game Over for Cable Clutter

The ultimate zero-visibility cable management solution: all cabling is routed through the integrated base compartment, frontloading an ultra-clean interior from the start at setup.

Ambidextrous IO Module

An ingenious sliding rail system lets you position the IO module with full functionality on either the left or right side of the OmnyX. This smart design frees up additional connector space, expanding the conventional port array to 4x USB 3.0 Type-A and 2x USB 3.2 Gen 2 Type-C.

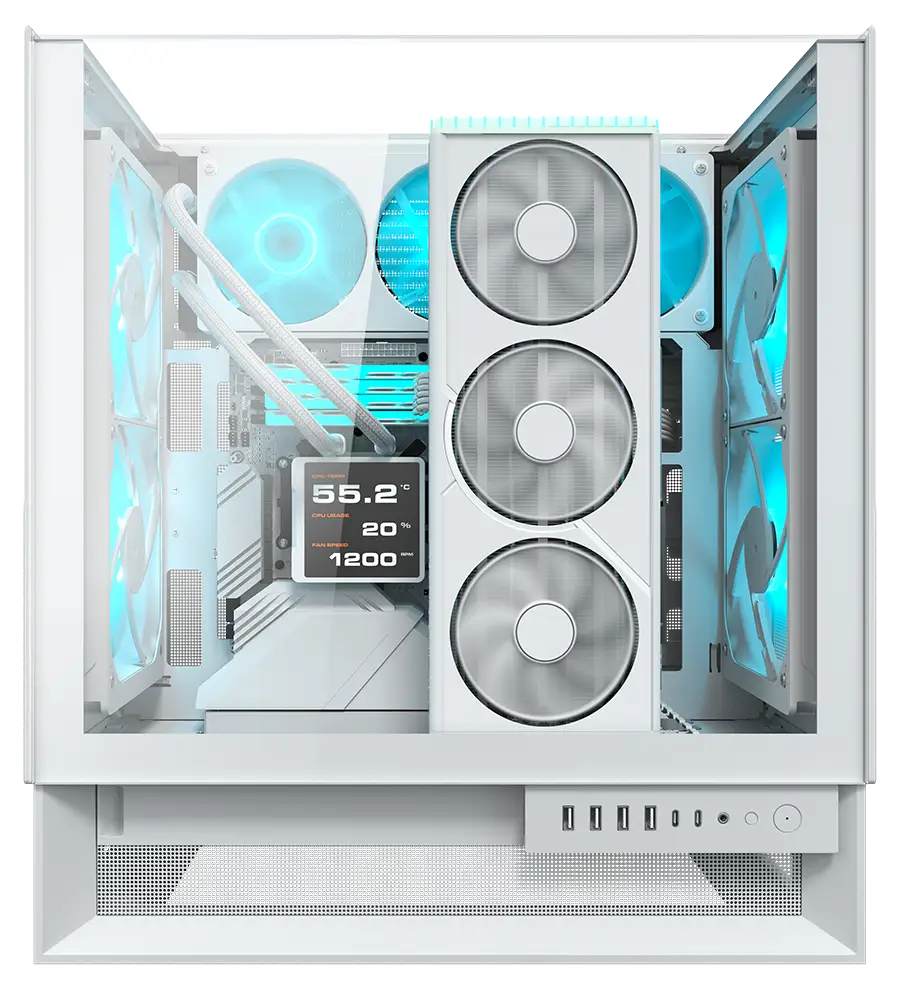

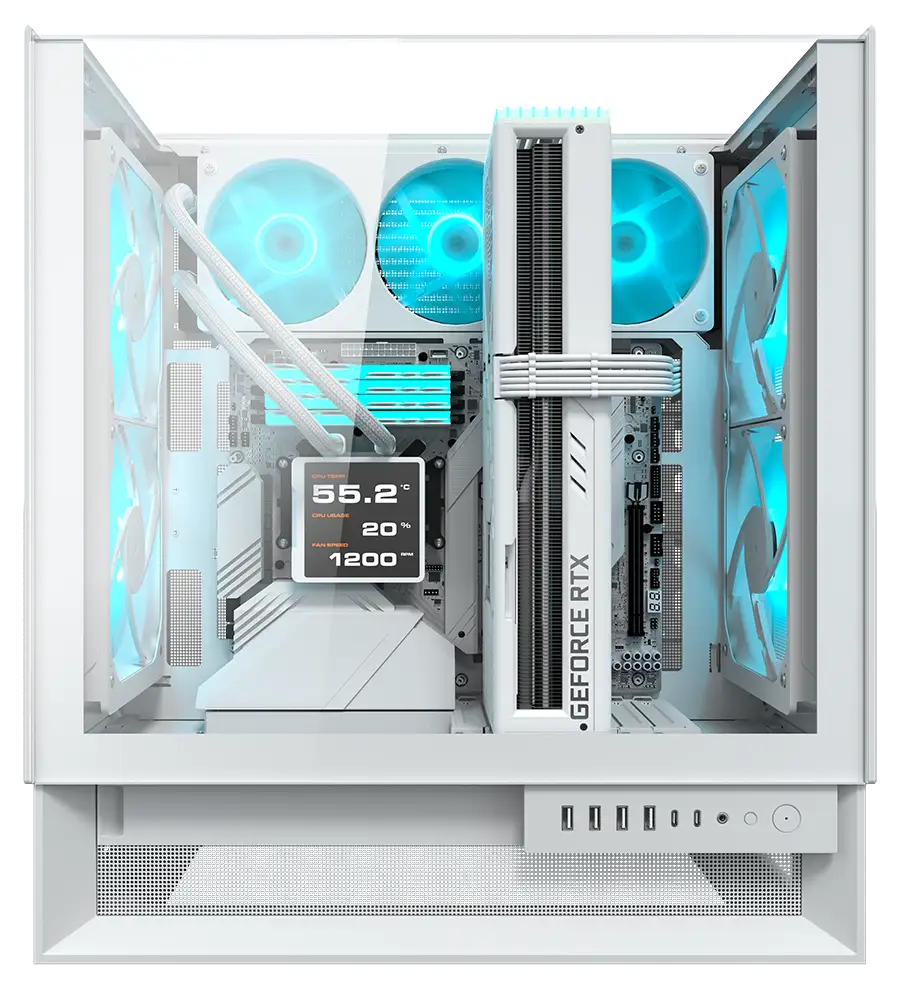

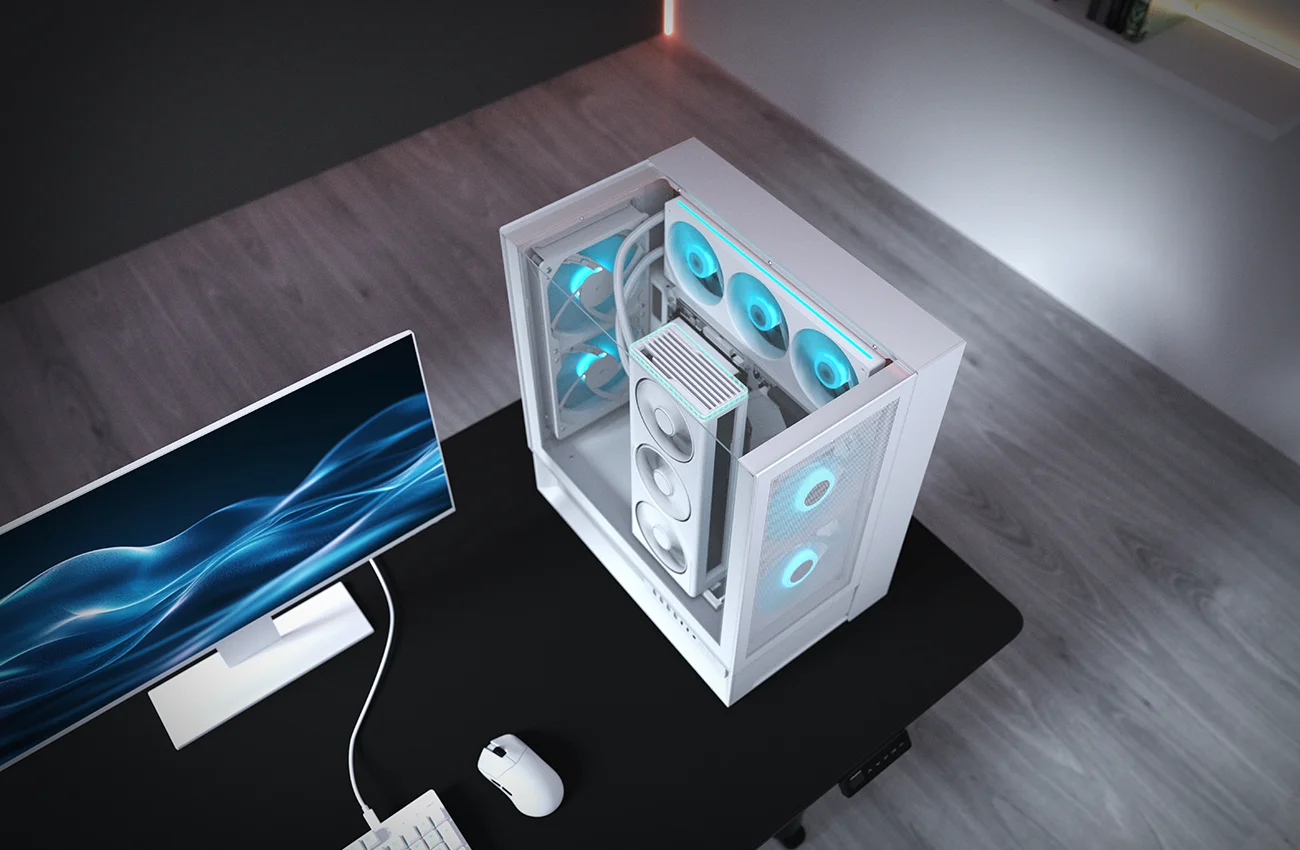

Bracketless Vertical GPU Mounting

The OmnyX accommodates a maximum GPU length of 380mm which can be vertically mounted without a bracket, maximizing surface exposure area to airflow for superior cooling. This also naturally aligns the GPU with gravity for inherent stability, mitigating the risk of damage to premium hardware from accidental displacement.

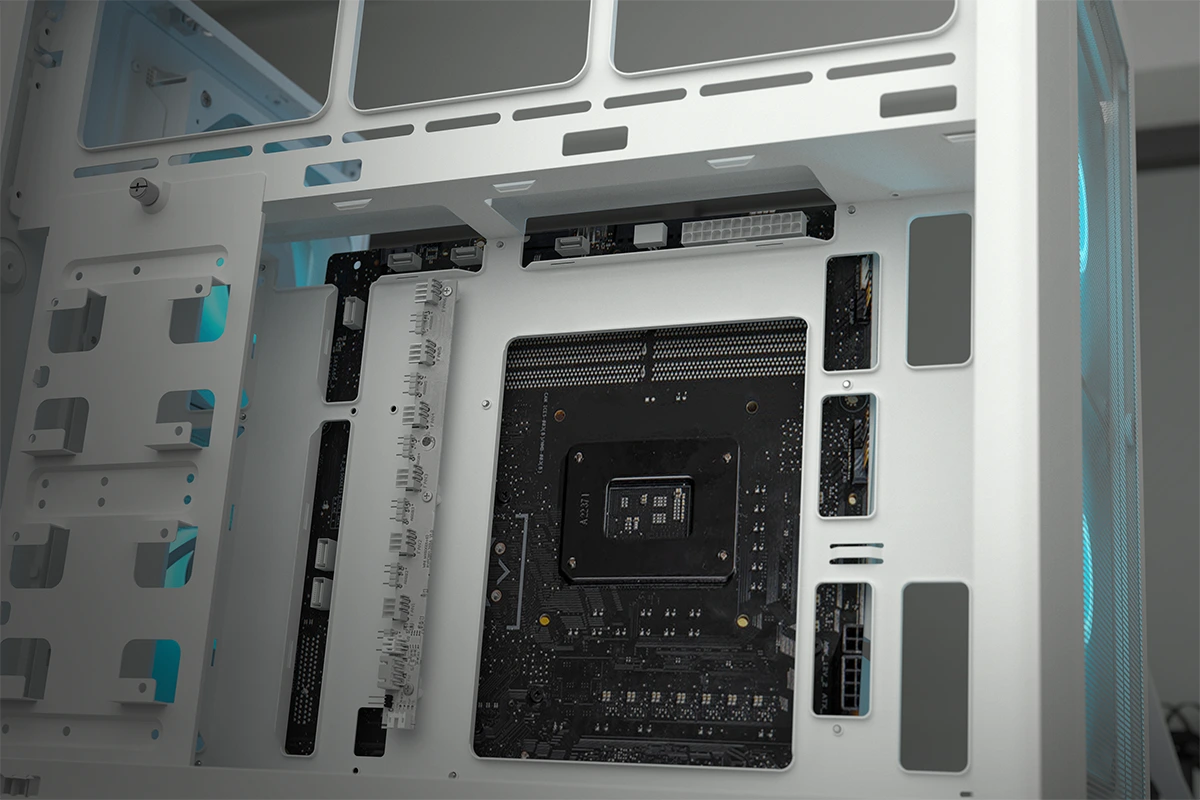

The Future of Motherboard Compatibility

The OmnyX is also fully compatible with reverse connector motherboards, including ASUS BTF, MSI Project Zero, and AORUS Stealth Ice. We’re not just ready for the gaming rigs of the future: we welcome them.

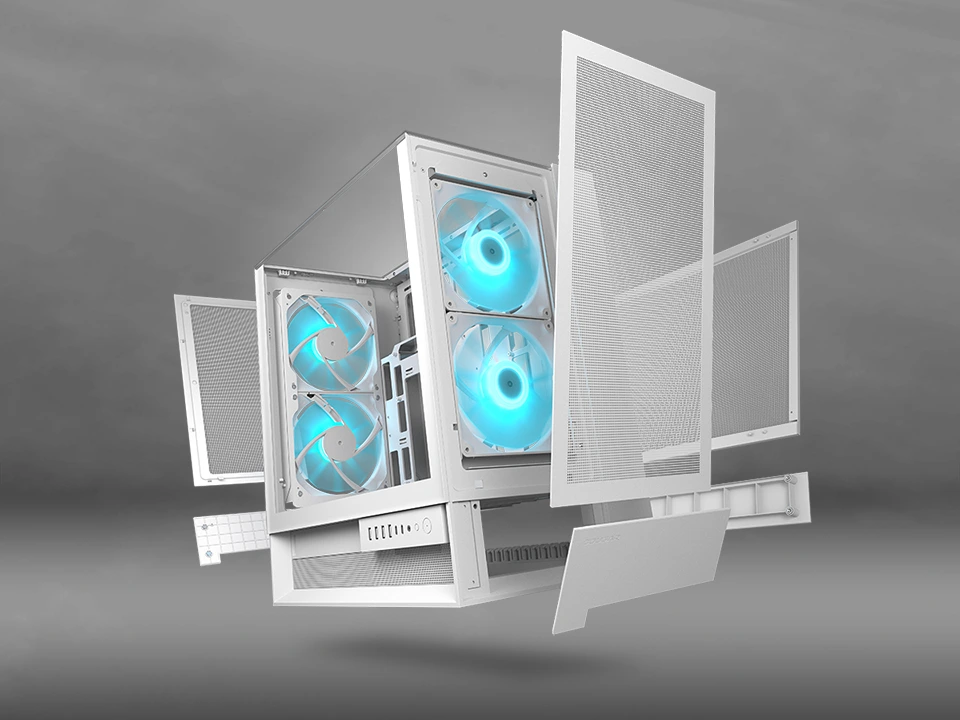

Quick Release Mechanism
Magnetic dust filter panel and quick release covers on the cable management compartment make removal and maintenance a breeze.

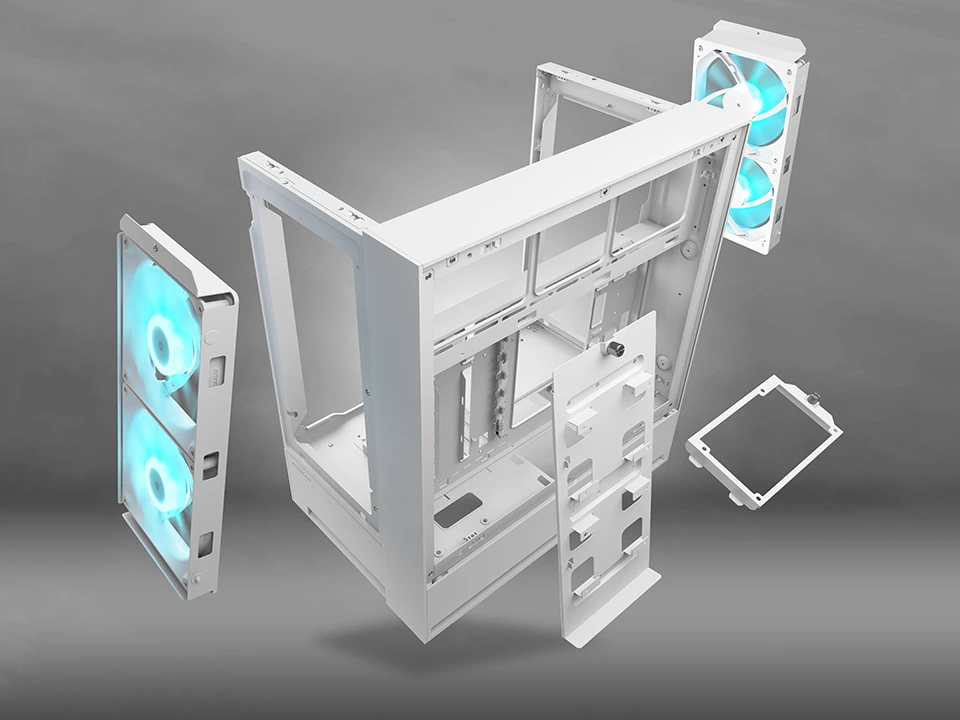

Streamlined Installation
Detachable fan brackets, SSD/HDD bracket and PSU bracket lets you install these components without hassle.
Create Without Limit

Personalize your build with a near-endless choice of customizable covers.

Light. Speed.

The OmnyX features an integrated universal fan hub that enables seamless coordination of PWM fan speed and lighting. This allows you to control the RGB lighting without needing additional software, or motherboard software synchronization.

Specifications

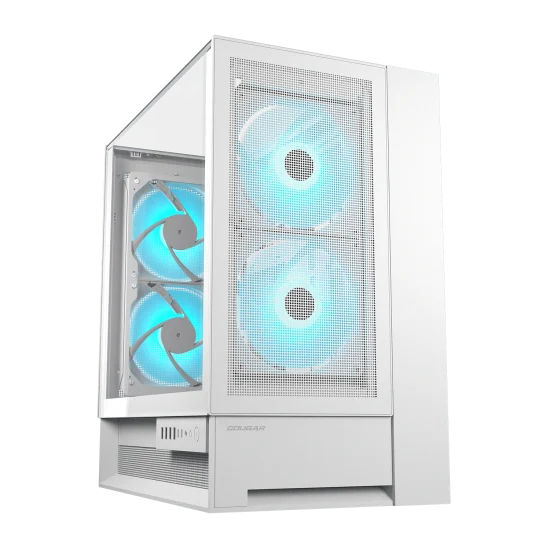

Product Name OmnyX / OmnyX (White)
Case Form Factor Mid Tower
Motherboard Type Mini ITX / Micro ATX / ATX
Dimensions (WxHxD) 300(W) x 520(H) x 470(D) (mm)
11.8(W) x 20.5(H) x 18.5(D) (in)
I/O Panel USB 3.2 Gen 2 Type-C x 2, USB 3.0 Type-A x 4, 4 Pole Headset Audio Jack x 1
3.5" Drive Bay 2
2.5" Drive Bay 2
Expansion Slots 7 (horizontal slots can be converted into vertical slots)
Cooling Fan Support Front *120mm x 2 / *140mm x 2 / 160mm x 2
M/B Side 120mm x 3
Rear *120mm x 2 / *140mm x 2 / 160mm x 2
Pre-installed Fans Front 160mm ARGB PWM fan x 2 (Forward Blade)
Rear 160mm ARGB PWM fan x 2 (Reverse Blade)
Speed 300-1200 ± 10% RPM
Connector 5V 3 Pin (ARGB) / 4 Pin PWM (Fan)
Maximun Number of Fans 7
Water Cooling Support Front *280mm / *240 mm / *140 mm / *120mm
M/B Side 360mm / 240mm
Rear *280mm / *240 mm / *140 mm / *120mm
RGB Hub Sync with M/B Yes
Max. Graphics Card Length 380(mm) / 15(in)
Max. CPU Cooler Height 170(mm) / 6.7(in)
Max. PSU Length 200(mm) / 7.9(in)
* A dedicated bracket is required for installing 120mm/140mm fans and water cooling. The bracket may not be included in some regions.
Please check with the retailer before purchasing.
OmnyX OmnyX (White)
Product Number (P/N) 382WA30.0001 382WA30.0002
Model No. CGR-2WA3B-RGB CGR-2WA3W-RGB
EAN CODE 4710483779442 4710483779459
UPC CODE 192554009179 192554009186
JAN CODE 4541995039492 4541995039508
Individual Size W/O Packaging Weight (N.Weight) 12.6 (kg)
Individual Packaging Weight (G.Weight) 15.4 (kg)
Individual Size W/O Packaging (WxHxD) 300 x 520 x 470 (mm)
Individual Packaging Size (WxHxD) 390 x 575 x 635 (mm)

Downloads

USER MANUAL
